Namespace: |
|
Content: |
complex, 14 elements |
Defined: |
globally in fpml-eqd-5-3.xsd; see XML source |
Includes: |
definitions of 14 elements |
Used: |
at 2 locations |

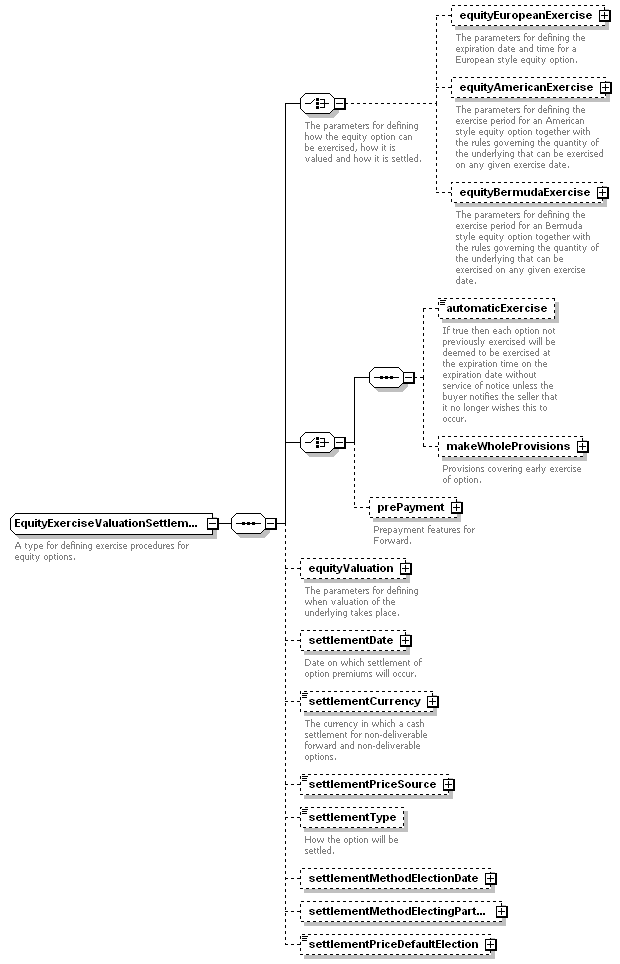

XML Representation Summary |
|||
<...> | |||
</...> |
<xsd:complexType name="EquityExerciseValuationSettlement"> <xsd:sequence> <xsd:choice> </xsd:choice> <xsd:choice> <xsd:sequence> </xsd:sequence> </xsd:choice> <xsd:element minOccurs="0" name="settlementPriceDefaultElection" type="SettlementPriceDefaultElection"/> </xsd:sequence> </xsd:complexType> |
Type: |
xsd:boolean, predefined, simple content |
<xsd:element minOccurs="0" name="automaticExercise" type="xsd:boolean"/> |
Type: |
EquityAmericanExercise, complex content |
<xsd:element minOccurs="0" name="equityAmericanExercise" type="EquityAmericanExercise"/> |
Type: |
EquityBermudaExercise, complex content |
<xsd:element minOccurs="0" name="equityBermudaExercise" type="EquityBermudaExercise"/> |
Type: |
EquityEuropeanExercise, complex content |
<xsd:element minOccurs="0" name="equityEuropeanExercise" type="EquityEuropeanExercise"/> |
Type: |
EquityValuation, complex content |
<xsd:element minOccurs="0" name="equityValuation" type="EquityValuation"/> |
Type: |
MakeWholeProvisions, complex content |
<xsd:element minOccurs="0" name="makeWholeProvisions" type="MakeWholeProvisions"/> |
Type: |
PrePayment, complex content |
<xsd:element minOccurs="0" name="prePayment" type="PrePayment"/> |
Type: |
Currency, simple content |
xsd:normalizedString |
maxLength: |
255 |
<xsd:element minOccurs="0" name="settlementCurrency" type="Currency"/> |
Type: |
AdjustableOrRelativeDate, complex content |
<xsd:element minOccurs="0" name="settlementDate" type="AdjustableOrRelativeDate"/> |
Type: |
PartyReference, empty content |
<xsd:element minOccurs="0" name="settlementMethodElectingPartyReference" type="PartyReference"/> |
Type: |
AdjustableOrRelativeDate, complex content |
<xsd:element minOccurs="0" name="settlementMethodElectionDate" type="AdjustableOrRelativeDate"/> |
Type: |
SettlementPriceDefaultElection, simple content |
xsd:normalizedString |
maxLength: |
255 |
<xsd:element minOccurs="0" name="settlementPriceDefaultElection" type="SettlementPriceDefaultElection"/> |
Type: |
SettlementPriceSource, simple content |
xsd:normalizedString |
maxLength: |
255 |
<xsd:element minOccurs="0" name="settlementPriceSource" type="SettlementPriceSource"/> |
Type: |
SettlementTypeEnum, simple content |
("Cash" | "Physical") | "Election" |
<xsd:element minOccurs="0" name="settlementType" type="SettlementTypeEnum"/> |
