group "ExposureCategory.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
26 elements
Defined:
globally in fpml-reporting-5-3.xsd; see XML source
Used:
at 1 location

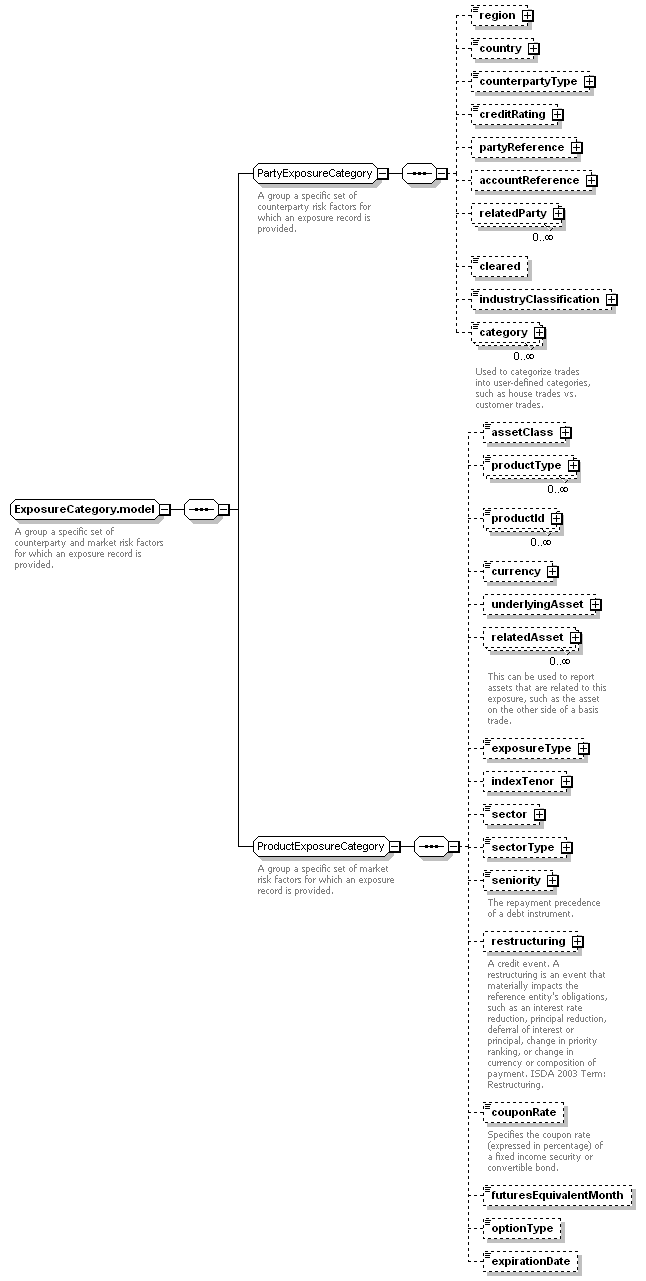

Content Model Diagram
Complex Content Model
region?, country?, counterpartyType?, creditRating?, partyReference?, accountReference?, relatedParty*, cleared?, industryClassification?, category*, assetClass?, productType*, productId*, currency?, underlyingAsset?, relatedAsset*, exposureType?, indexTenor?, sector?, sectorType?, seniority?, restructuring?, couponRate?, futuresEquivalentMonth?, optionType?, expirationDate?
Content Model Elements (26):
accountReference (defined in PartyExposureCategory group),
category (defined in PartyExposureCategory group),
cleared (defined in PartyExposureCategory group),
country (defined in PartyExposureCategory group),
currency (defined in ProductExposureCategory group),
 industryClassification,
sector (defined in ProductExposureCategory group),
Known Usage Locations
Annotation
A group a specific set of counterparty and market risk factors for which an exposure record is provided.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="ExposureCategory.model">
<xsd:sequence>
<xsd:group ref="PartyExposureCategory"/>
<xsd:group ref="ProductExposureCategory"/>
</xsd:sequence>
</xsd:group>
