element <commodityForward> (global)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
CommodityForward
Content:
complex, 1 attribute, 11 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-com-5-3.xsd; see XML source
Used:
at 1 location

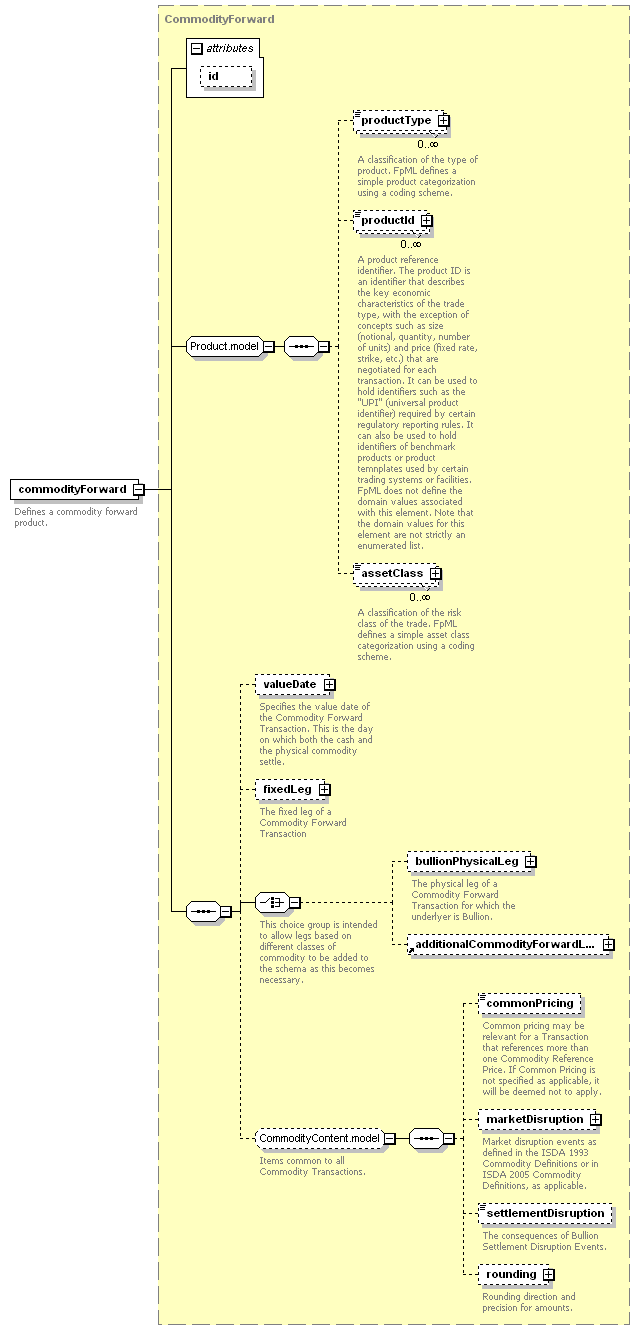

Content Model Diagram
XML Representation Summary
<commodityForward

id
 =
 xsd:ID
    >

Content:
 productType*, productId*, assetClass*, valueDate?, fixedLeg?, (bullionPhysicalLeg? | additionalCommodityForwardLeg?), (commonPricing?, marketDisruption?, settlementDisruption?, rounding?)?
</commodityForward>
Content model elements (11):
additionalCommodityForwardLeg,
assetClass (defined in Product.model group),
 productId (defined in Product.model group),
productType (defined in Product.model group),
rounding (defined in CommodityContent.model group),
Included in content model of elements (1):
commodityOption
May be included in elements by substitutions (15):
newTrade,
oldTrade (defined in TradeChangeContent complexType),
trade (defined in DataDocument complexType),
 trade (defined in Events.model group),
trade (defined in PositionConstituent complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
trade (defined in TradeValuationItem complexType),
Known Usage Locations
Annotation
Defines a commodity forward product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodityForward" substitutionGroup="product" type="CommodityForward"/>
