element <nonSchemaProduct> (global)

Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	GenericProduct
Content:	complex, 1 attribute, 16 elements
Subst.Gr:	may substitute for element product
Defined:	globally in fpml-generic-5-3.xsd; see XML source
Used:	never

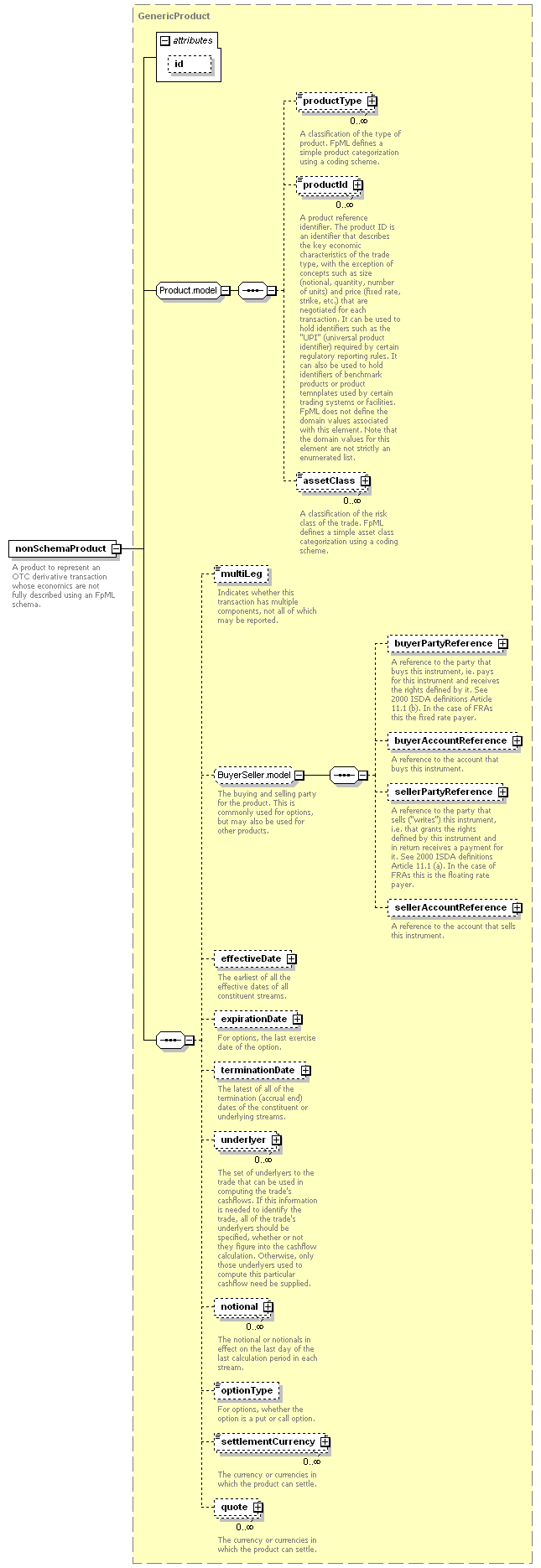

Content Model Diagram

XML Representation Summary

<nonSchemaProduct

xsd:ID

Content:

productType*, productId*, assetClass*, multiLeg?, (buyerPartyReference?, buyerAccountReference?, sellerPartyReference?, sellerAccountReference?)?, effectiveDate?, expirationDate?, terminationDate?, underlyer*, notional*, optionType?, settlementCurrency*, quote*

</nonSchemaProduct>

Content model elements (16):

assetClass (defined in Product.model group),

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

effectiveDate (defined in GenericProduct complexType),

expirationDate (defined in GenericProduct complexType),

multiLeg,

notional (defined in GenericProduct complexType),

optionType (defined in GenericProduct complexType),

productId (defined in Product.model group),

productType (defined in Product.model group),

quote (defined in GenericProduct complexType),

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group),

settlementCurrency (defined in GenericProduct complexType),

terminationDate (defined in GenericProduct complexType),

underlyer (defined in GenericProduct complexType)

May be included in elements by substitutions (15):

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade,

physicalSettlement (in optionExercise),

resultingTrade,

strategy,

trade (defined in DataDocument complexType),

trade (defined in Events.model group),

trade (defined in PositionConstituent complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradeValuationItem complexType),

trade (in affectedTransactions),

trade (in amendment)

Annotation

A product to represent an OTC derivative transaction whose economics are not fully described using an FpML schema.

XML Source (w/o annotations (1); see within schema source)

<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Replaced by genericProduct" name="nonSchemaProduct" substitutionGroup="product" type="GenericProduct"/>
