complexType "Swaption"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 1 attribute, 17 elements
Defined:
globally in fpml-ird-5-3.xsd; see XML source
Includes:
definitions of 10 elements
Used:
at 1 location

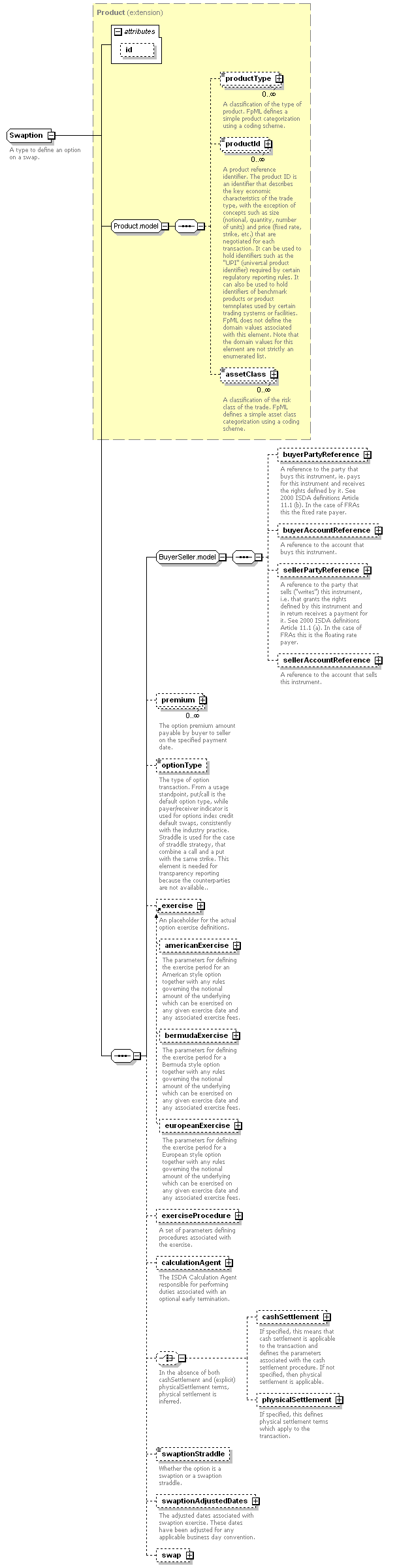

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 productType*, productId*, assetClass*, buyerPartyReference?, buyerAccountReference?, sellerPartyReference?, sellerAccountReference?, premium*, optionType?, exercise?, exerciseProcedure?, calculationAgent?, (cashSettlement? | physicalSettlement?)?, swaptionStraddle?, swaptionAdjustedDates?, swap?
</...>
Content Model Elements (17):
assetClass (defined in Product.model group), premium (in swaption),
productId (defined in Product.model group),
productType (defined in Product.model group),
All Direct / Indirect Based Elements (1):
swaption
Known Usage Locations
Annotation
A type to define an option on a swap.
Type Definition Detail
Type Derivation Tree
Product (extension)
  Swaption
XML Source (w/o annotations (10); see within schema source)
<xsd:complexType name="Swaption">
<xsd:complexContent>
<xsd:extension base="Product">
<xsd:sequence>
<xsd:group ref="BuyerSeller.model"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="premium" type="Payment"/>
<xsd:element minOccurs="0" name="optionType" type="OptionTypeEnum"/>
<xsd:element minOccurs="0" ref="exercise"/>
<xsd:element minOccurs="0" name="exerciseProcedure" type="ExerciseProcedure"/>
<xsd:element minOccurs="0" name="calculationAgent" type="CalculationAgent"/>
<xsd:choice minOccurs="0">
<xsd:element minOccurs="0" name="cashSettlement" type="CashSettlement"/>
<xsd:element minOccurs="0" name="physicalSettlement" type="SwaptionPhysicalSettlement"/>
</xsd:choice>
<xsd:element minOccurs="0" name="swaptionStraddle" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="swaptionAdjustedDates" type="SwaptionAdjustedDates"/>
<xsd:element minOccurs="0" name="swap" type="Swap"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 10/17)
calculationAgent
Type:
CalculationAgent, complex content
The ISDA Calculation Agent responsible for performing duties associated with an optional early termination.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationAgent" type="CalculationAgent"/>
cashSettlement
Type:
CashSettlement, complex content
If specified, this means that cash settlement is applicable to the transaction and defines the parameters associated with the cash settlement procedure. If not specified, then physical settlement is applicable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="cashSettlement" type="CashSettlement"/>
exercise
Type:
Exercise, empty content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 3 elements
XML Source (see within schema source)
<xsd:element minOccurs="0" ref="exercise"/>
exerciseProcedure
Type:
ExerciseProcedure, complex content
A set of parameters defining procedures associated with the exercise.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="exerciseProcedure" type="ExerciseProcedure"/>
optionType
Type:
OptionTypeEnum, simple content
The type of option transaction. From a usage standpoint, put/call is the default option type, while payer/receiver indicator is used for options index credit default swaps, consistently with the industry practice. Straddle is used for the case of straddle strategy, that combine a call and a put with the same strike. This element is needed for transparency reporting because the counterparties are not available..
Simple Content
("Put" | "Call") | ("Payer" | "Receiver" | "Straddle")
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="optionType" type="OptionTypeEnum"/>
physicalSettlement
Type:
SwaptionPhysicalSettlement, complex content
If specified, this defines physical settlement terms which apply to the transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="physicalSettlement" type="SwaptionPhysicalSettlement"/>
premium
Type:
Payment, complex content
The option premium amount payable by buyer to seller on the specified payment date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="premium" type="Payment"/>
swap
Type:
Swap, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="swap" type="Swap"/>
swaptionAdjustedDates
Type:
SwaptionAdjustedDates, complex content
The adjusted dates associated with swaption exercise. These dates have been adjusted for any applicable business day convention.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="swaptionAdjustedDates" type="SwaptionAdjustedDates"/>
swaptionStraddle
Type:
xsd:boolean, predefined, simple content
Whether the option is a swaption or a swaption straddle.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="swaptionStraddle" type="xsd:boolean"/>
