element <relatedParty> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
PartyRelationship
Content:
complex, 7 elements
Defined:
locally witnin Party complexType in fpml-shared-5-3.xsd; see XML source

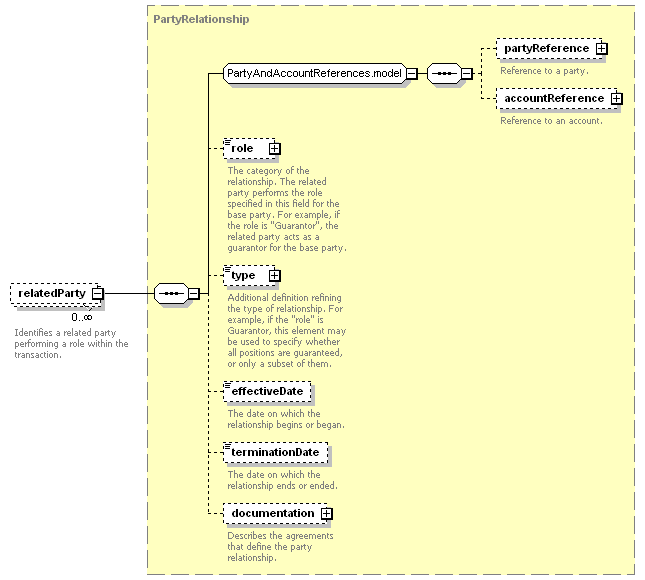

Content Model Diagram
XML Representation Summary
<relatedParty>

Content:
 partyReference?, accountReference?, role?, type?, effectiveDate?, terminationDate?, documentation?
</relatedParty>
Content model elements (7):
accountReference (defined in PartyAndAccountReferences.model group),
documentation (in relatedParty defined in Party complexType),
effectiveDate (in relatedParty defined in Party complexType),
partyReference (defined in PartyAndAccountReferences.model group),
role (in relatedParty defined in Party complexType),
terminationDate (in relatedParty defined in Party complexType),
type (in relatedParty defined in Party complexType)
Included in content model of elements (5):
party (defined in PartiesAndAccounts.model group), party (in nettedTradeCashflowsMatchResult),
Annotation
Identifies a related party performing a role within the transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="PartyRelationship"/>
