group "Premium.model"
Namespace:
Content:
Defined:
Includes:
definitions of 3 elements
Used:

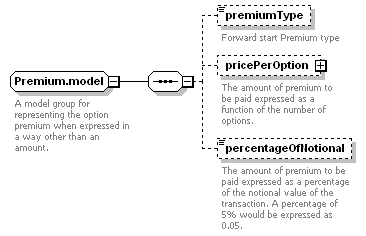

Content Model Diagram
Complex Content Model
premiumType?, pricePerOption?, percentageOfNotional?
Content Model Elements (3):
percentageOfNotional (in premium defined in OptionBaseExtended complexType),
premiumType (in premium defined in OptionBaseExtended complexType),
pricePerOption (in premium defined in OptionBaseExtended complexType)
Known Usage Locations
Annotation
A model group for representing the option premium when expressed in a way other than an amount.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="Premium.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="premiumType" type="PremiumTypeEnum"/>
<xsd:element minOccurs="0" name="pricePerOption" type="Money"/>
<xsd:element minOccurs="0" name="percentageOfNotional" type="xsd:decimal"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
percentageOfNotional
Type:
xsd:decimal, predefined, simple content
The amount of premium to be paid expressed as a percentage of the notional value of the transaction. A percentage of 5% would be expressed as 0.05.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="percentageOfNotional" type="xsd:decimal"/>

premiumType
Type:
PremiumTypeEnum, simple content
Forward start Premium type
Simple Content
enumeration of xsd:token
Enumeration:
"PrePaid"
 -
TODO
"PostPaid"
 -
TODO
"Variable"
 -
TODO
"Fixed"
 -
TODO
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="premiumType" type="PremiumTypeEnum"/>

pricePerOption
Type:
Money, complex content
The amount of premium to be paid expressed as a function of the number of options.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="pricePerOption" type="Money"/>
