complexType "ExecutionAdvice"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 24 elements
Defined:
globally in fpml-confirmation-processes-5-3.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

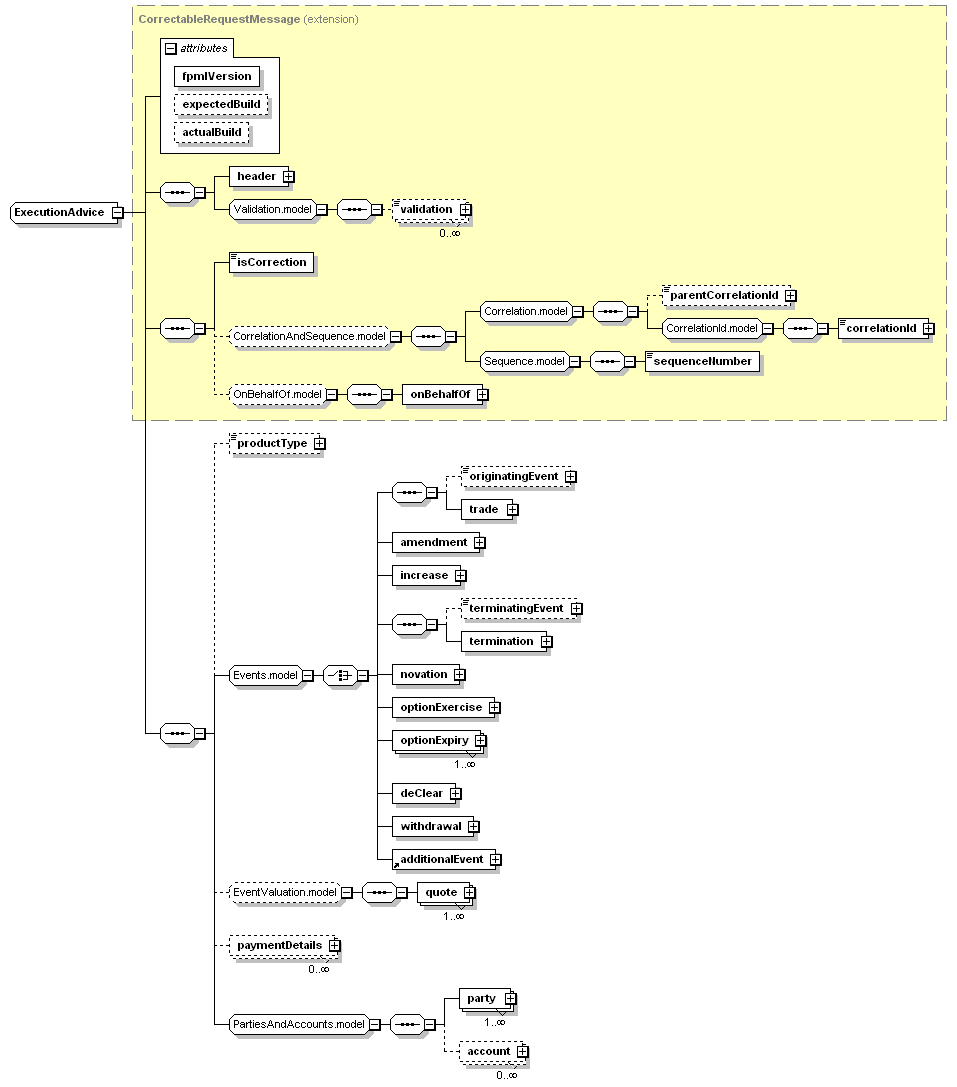

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
 xsd:token
expectedBuild
 =
 xsd:positiveInteger
actualBuild
 =
 "5"
    >

Content:
 header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, productType?, ((originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | optionExercise | optionExpiry+ | deClear | withdrawal | additionalEvent), quote+?, paymentDetails*, party+, account*
</...>
Content Model Elements (24):
account,
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
optionExpiry (defined in Events.model group),
 originatingEvent (defined in Events.model group),
party (defined in PartiesAndAccounts.model group),
quote (defined in EventValuation.model group),
sequenceNumber (defined in Sequence.model group),
terminatingEvent (defined in Events.model group),
trade (defined in Events.model group),
All Direct / Indirect Based Elements (1):
executionAdvice
Known Usage Locations
Annotation
A message advising a third party that a trade execution has occurred.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              ExecutionAdvice
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="ExecutionAdvice">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="productType" type="ProductType"/>
<!-- added 2010-09 for Option Excercise / Expiry -->
<xsd:group ref="Events.model"/>
<xsd:group minOccurs="0" ref="EventValuation.model"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentDetails" type="PaymentDetails"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/24)
paymentDetails
Type:
PaymentDetails, complex content
Details of the payments, like amount breakdowns, settlement information.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentDetails" type="PaymentDetails"/>
productType
Type:
ProductType, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="productType" type="ProductType"/>
