element <marginAcknowledgement> (global)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
Acknowledgement
Content:
complex, 3 attributes, 9 elements
Defined:
globally in fpml-collateral-processes-5-3.xsd; see XML source
Used:
never

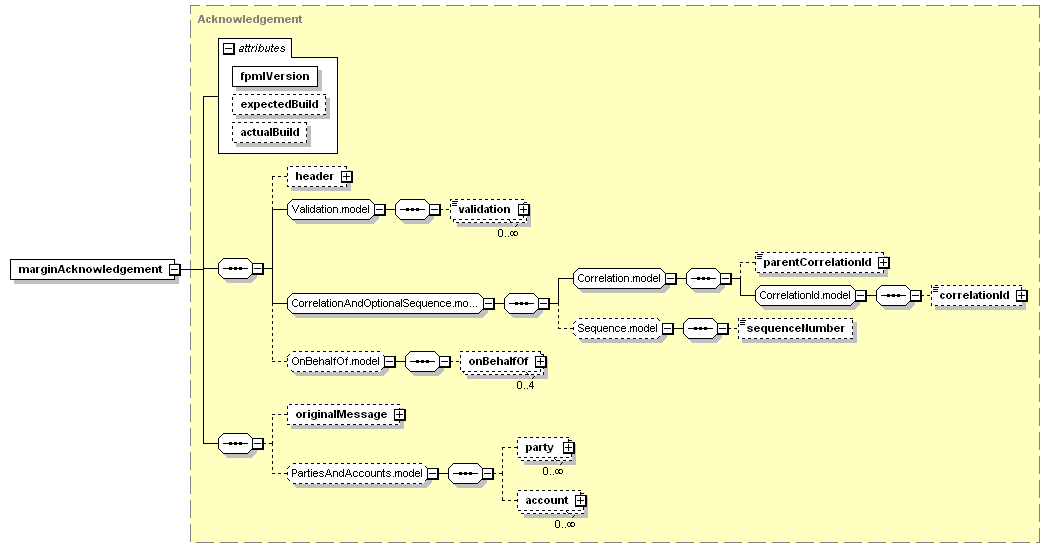

Content Model Diagram
XML Representation Summary
<marginAcknowledgement

fpmlVersion
 =
 xsd:token
expectedBuild
 =
 xsd:positiveInteger
actualBuild
 =
 "6"
    >

Content:
 header?, validation*, parentCorrelationId?, correlationId?, sequenceNumber??, onBehalfOf[0..4]?, originalMessage?, (party*, account*)?
</marginAcknowledgement>
Content model elements (9):
account,
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
originalMessage (defined in Acknowledgement complexType),
 parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
XML Source (see within schema source)
<xsd:element name="marginAcknowledgement" type="Acknowledgement"/>
