element <commodityForward> (global)

Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	CommodityForward
Content:	complex, 1 attribute, 13 elements
Subst.Gr:	may substitute for element product
Defined:	globally in fpml-com-5-3.xsd; see XML source
Used:	at 1 location

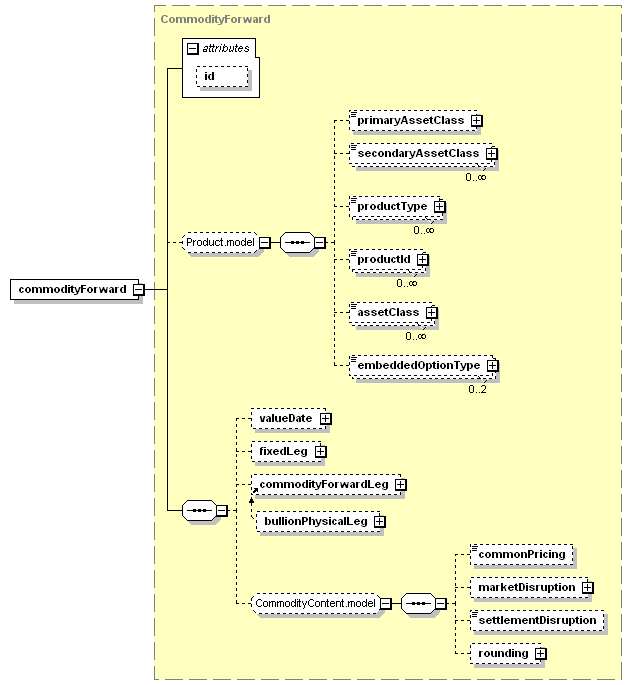

Content Model Diagram

XML Representation Summary

<commodityForward

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*, embeddedOptionType[0..2])?, valueDate?, fixedLeg?, commodityForwardLeg?, (commonPricing?, marketDisruption?, settlementDisruption?, rounding?)?

</commodityForward>

Content model elements (13):

assetClass (defined in Product.model group),

commodityForwardLeg,

commonPricing,

embeddedOptionType,

fixedLeg (in commodityForward),

marketDisruption (defined in CommodityContent.model group),

primaryAssetClass (defined in Product.model group),

productId (defined in Product.model group),

productType (defined in Product.model group),

rounding (defined in CommodityContent.model group),

secondaryAssetClass (defined in Product.model group),

settlementDisruption,

valueDate (in commodityForward)

Included in content model of elements (1):

commodityOption

May contain elements by substitutions (1):

bullionPhysicalLeg

May be included in elements by substitutions (18):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionExercise),

physicalSettlement (in optionExercise),

resultingTrade,

strategy,

trade (defined in DataDocument complexType),

trade (defined in Events.model group),

trade (defined in ImpliedTrade complexType),

trade (defined in PositionConstituent complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradeValuationItem complexType),

trade (in affectedTransactions),

trade (in amendment)

Known Usage Locations

Within model groups (1):
CommodityPhysicalOption.model [ref]

Annotation

Defines a commodity forward product.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commodityForward" substitutionGroup="product" type="CommodityForward"/>
