group "CommodityUSCoalDelivery.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
3 elements
Defined:
globally in fpml-com-5-3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

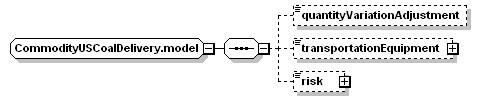

Content Model Diagram
Complex Content Model
quantityVariationAdjustment?, transportationEquipment?, risk?
Content Model Elements (3):
quantityVariationAdjustment, transportationEquipment
Known Usage Locations
Annotation
Items specific to the definition of the delivery of a US Coal Product.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="CommodityUSCoalDelivery.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="quantityVariationAdjustment" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="transportationEquipment" type="CoalTransportationEquipment"/>
<xsd:element minOccurs="0" name="risk" type="CommodityDeliveryRisk"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
quantityVariationAdjustment
Type:
xsd:boolean, predefined, simple content
If true, indicates that QVA is applicable. If false, indicates that QVA is inapplicable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="quantityVariationAdjustment" type="xsd:boolean"/>
risk
Type:
CommodityDeliveryRisk, simple content
Specifies how the risk associated with the delivery is assigned.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="risk" type="CommodityDeliveryRisk"/>
transportationEquipment
Type:
CoalTransportationEquipment, simple content
The transportation equipment with which the Coal Product will be delivered and received.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="transportationEquipment" type="CoalTransportationEquipment"/>
