element <feature> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
OptionFeatures
Content:
complex, 5 elements
Defined:
locally witnin Feature.model group in fpml-eq-shared-5-3.xsd; see XML source

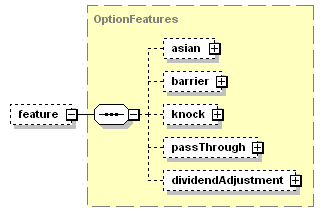

Content Model Diagram
XML Representation Summary
<feature>

Content:
 asian?, barrier?, knock?, passThrough?, dividendAdjustment?
</feature>
Content model elements (5):
asian (in feature defined in Feature.model group),
barrier (in feature defined in Feature.model group),
 knock (in feature defined in Feature.model group),
passThrough (in feature defined in Feature.model group)
Included in content model of elements (4):
brokerEquityOption, equityForward, equityOption, equityOptionTransactionSupplement
Annotation
Asian, Barrier, Knock and Pass Through features.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="feature" type="OptionFeatures"/>
