group "TradeCashflows.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
3 elements
Defined:
globally in fpml-reconciliation-5-3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 3 locations

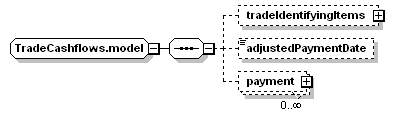

Content Model Diagram
Complex Content Model
tradeIdentifyingItems?, adjustedPaymentDate?, payment*
Content Model Elements (3):
adjustedPaymentDate (defined in TradeCashflows.model group),
payment (defined in TradeCashflows.model group),
tradeIdentifyingItems (defined in TradeCashflows.model group)
Known Usage Locations
Annotation
A group describing the cashflows owing on a particular adjustedPaymentDate for a specific trade.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="TradeCashflows.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="tradeIdentifyingItems" type="TradeIdentifyingItems"/>
<xsd:element minOccurs="0" name="adjustedPaymentDate" type="xsd:date"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="payment" type="PaymentMatching"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
adjustedPaymentDate
Type:
xsd:date, predefined, simple content
The adjusted date in which the payments are being paid/received.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="adjustedPaymentDate" type="xsd:date"/>
payment
Type:
PaymentMatching, complex content
Specifies the payment that is exposed to the matching process. Usually there will be a single payment but for cross-currency swaps a different payment per currency shall be provided.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="payment" type="PaymentMatching"/>
tradeIdentifyingItems
Type:
TradeIdentifyingItems, complex content
Structure that holds reference to the trade through the tradeId and optionally some trade-specific elements for identifying the trade in the case of trades that have not been negotiated through electronic platforms and for which the counterparty's trade ID has not been captured.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="tradeIdentifyingItems" type="TradeIdentifyingItems"/>
