group "TradeCashflowsDefinition.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
3 elements
Defined:
globally in fpml-reconciliation-5-3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 4 locations

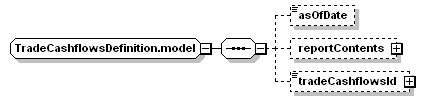

Content Model Diagram
Complex Content Model
asOfDate?, reportContents?, tradeCashflowsId?
Content Model Elements (3):
asOfDate (defined in TradeCashflowsDefinition.model group),
reportContents (defined in TradeCashflowsDefinition.model group),
tradeCashflowsId (defined in TradeCashflowsDefinition.model group)
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="TradeCashflowsDefinition.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="asOfDate" type="xsd:dateTime"/>
<xsd:element minOccurs="0" name="reportContents" type="ReportContents"/>
<xsd:element minOccurs="0" name="tradeCashflowsId" type="TradeCashflowsId"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
asOfDate
Type:
xsd:dateTime, predefined, simple content
The date and time at which the set of cashflows was defined.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="asOfDate" type="xsd:dateTime"/>
reportContents
Type:
ReportContents, complex content
The specific characteristics included in the report.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="reportContents" type="ReportContents"/>
tradeCashflowsId
Type:
TradeCashflowsId, simple content
Unique identifier assigned by the party asserting the set of cashflows to be reconciled.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="tradeCashflowsId" type="TradeCashflowsId"/>
