element <exchangeTradedFund> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ExchangeTradedFund
Content:
complex, 1 attribute, 11 elements
Subst.Gr:
may substitute for element underlyingAsset
Defined:
globally in fpml-asset-5-4.xsd; see XML source
Used:
never

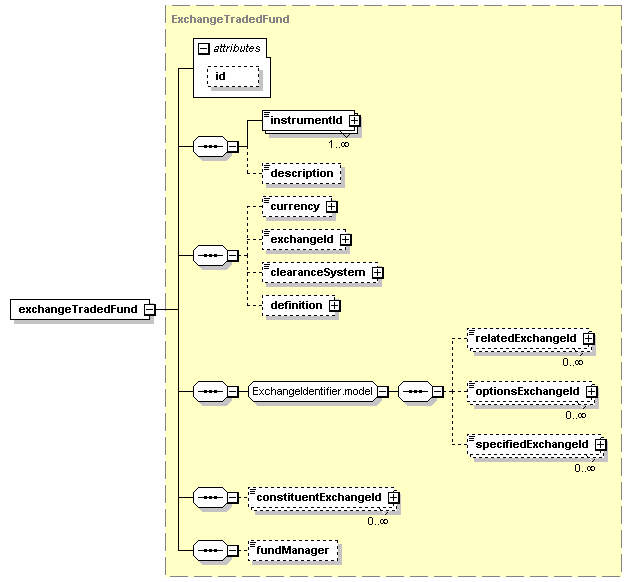

Content Model Diagram
XML Representation Summary
<exchangeTradedFund

id
 =
 xsd:ID
    >

Content:
 instrumentId+, description?, currency?, exchangeId?, clearanceSystem?, definition?, relatedExchangeId*, optionsExchangeId*, specifiedExchangeId*, constituentExchangeId*, fundManager?
</exchangeTradedFund>
Content model elements (11):
clearanceSystem (defined in UnderlyingAsset complexType),
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
 fundManager (in exchangeTradedFund),
instrumentId (defined in IdentifiedAsset complexType),
May be included in elements by substitutions (6):
basketConstituent, point (in dataPoints),
underlyer (defined in GenericProduct complexType)
Annotation
Identifies the underlying asset when it is an exchange-traded fund.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exchangeTradedFund" substitutionGroup="underlyingAsset" type="ExchangeTradedFund"/>
