complexType "TradeNovationContent"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 33 elements
Defined:
globally in fpml-business-events-5-4.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

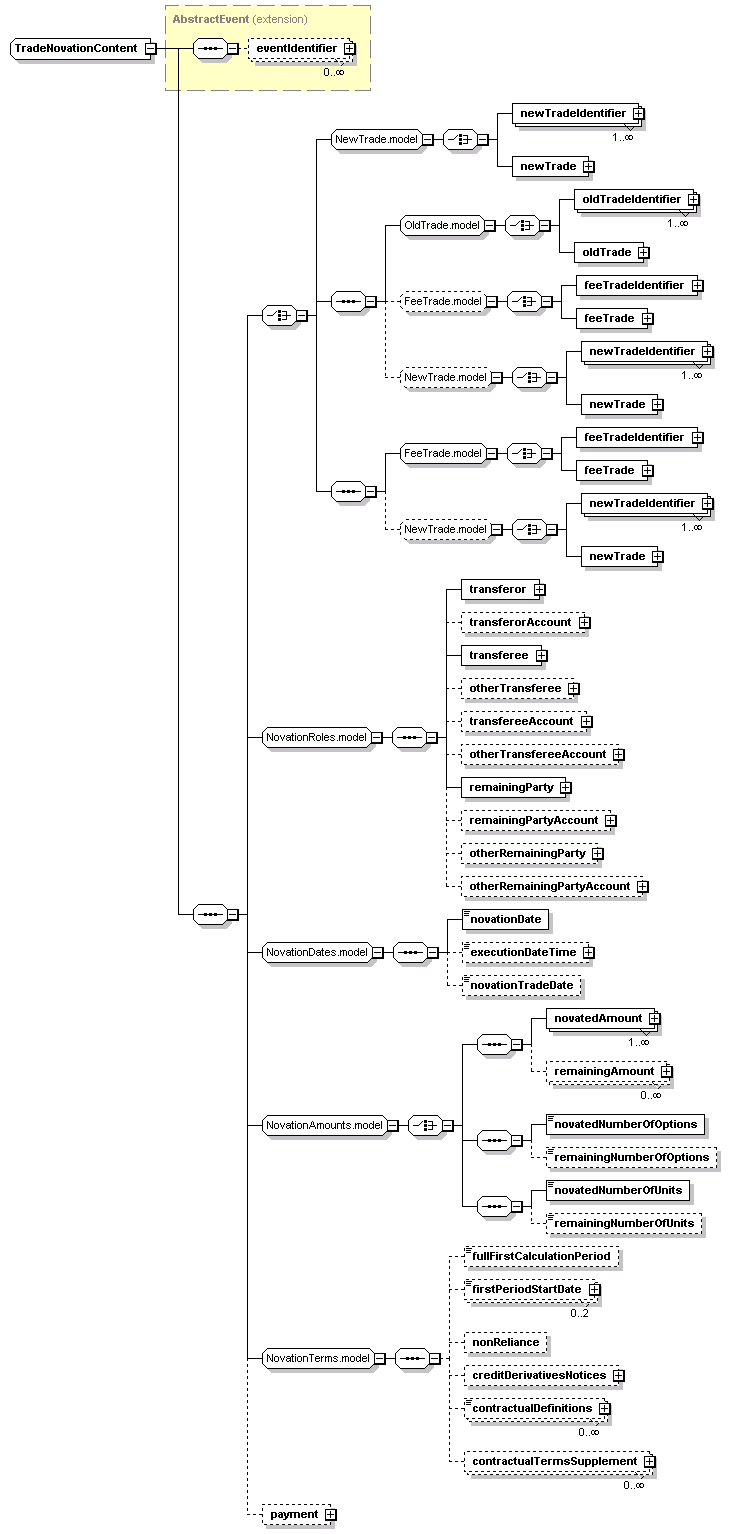

Content Model Diagram
XML Representation Summary
<...>

Content:
 eventIdentifier*, (newTradeIdentifier+ | newTrade | ((oldTradeIdentifier+ | oldTrade), (feeTradeIdentifier | feeTrade)?, (newTradeIdentifier+ | newTrade)?) | ((feeTradeIdentifier | feeTrade), (newTradeIdentifier+ | newTrade)?)), transferor, transferorAccount?, transferee, otherTransferee?, transfereeAccount?, otherTransfereeAccount?, remainingParty, remainingPartyAccount?, otherRemainingParty?, otherRemainingPartyAccount?, novationDate, executionDateTime?, novationTradeDate?, ((novatedAmount+, remainingAmount*) | (novatedNumberOfOptions, remainingNumberOfOptions?) | (novatedNumberOfUnits, remainingNumberOfUnits?)), fullFirstCalculationPeriod?, firstPeriodStartDate[0..2], nonReliance?, creditDerivativesNotices?, contractualDefinitions*, contractualTermsSupplement*, payment?
</...>
Content Model Elements (33):
contractualDefinitions (in novation),
eventIdentifier (defined in AbstractEvent complexType),
 oldTrade (in novation),
All Direct / Indirect Based Elements (1):
novation
Known Usage Locations
Annotation
A structure describing a novation.
Type Definition Detail
Type Derivation Tree
AbstractEvent (extension)
  TradeNovationContent
XML Source (w/o annotations (7); see within schema source)
<xsd:complexType name="TradeNovationContent">
<xsd:complexContent>
<xsd:extension base="AbstractEvent">
<xsd:sequence>
<xsd:choice>
<!--View Generation: Removed a degenerate choice.-->
<xsd:group ref="NewTrade.model"/>
<xsd:sequence>
<xsd:group ref="OldTrade.model"/>
<xsd:group minOccurs="0" ref="FeeTrade.model"/>
<xsd:group minOccurs="0" ref="NewTrade.model"/>
</xsd:sequence>
<xsd:sequence>
<xsd:group ref="FeeTrade.model"/>
<xsd:group minOccurs="0" ref="NewTrade.model"/>
</xsd:sequence>
</xsd:choice>
<xsd:group ref="NovationRoles.model"/>
<xsd:group ref="NovationDates.model"/>
<xsd:group ref="NovationAmounts.model"/>
<xsd:group ref="NovationTerms.model"/>
<xsd:element minOccurs="0" name="payment" type="Payment"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/33)
payment
Type:
Payment, complex content
Describes a payment made in settlement of the novation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="payment" type="Payment"/>
