group "MessageHeader.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
8 elements
Defined:
globally in fpml-msg-5-4.xsd; see XML source
Includes:
definitions of 8 elements
Used:
at 4 locations

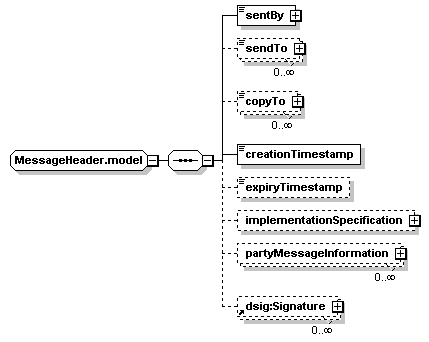

Content Model Diagram
Complex Content Model
sentBy, sendTo*, copyTo*, creationTimestamp, expiryTimestamp?, implementationSpecification?, partyMessageInformation*, dsig:Signature*
Content Model Elements (8):
copyTo, creationTimestamp, dsig:Signature, expiryTimestamp, implementationSpecification, partyMessageInformation, sendTo, sentBy
Known Usage Locations
Annotation
Defines the structure that contains routing and identification information, which allows processing and transfer of the message. It contains only messaging information that is applicable to all messages. If the information is not message related or is not applicable to all messages then it is not defined in the message header.
XML Source (w/o annotations (8); see within schema source)
<xsd:group name="MessageHeader.model">
<xsd:sequence>
<xsd:element name="sentBy" type="MessageAddress"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="sendTo" type="MessageAddress"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="copyTo" type="MessageAddress"/>
<xsd:element name="creationTimestamp" type="xsd:dateTime"/>
<xsd:element minOccurs="0" name="expiryTimestamp" type="xsd:dateTime"/>
<xsd:element minOccurs="0" name="implementationSpecification" type="ImplementationSpecification"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyMessageInformation" type="PartyMessageInformation"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" ref="dsig:Signature"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 8/8)
copyTo
Type:
MessageAddress, simple content
A unique identifier (within the specified coding scheme) giving the details of some party to whom a copy of this message will be sent for reference.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="copyTo" type="MessageAddress"/>
creationTimestamp
Type:
xsd:dateTime, predefined, simple content
The date and time (on the source system) when this message instance was created.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="creationTimestamp" type="xsd:dateTime"/>
dsig:Signature
Type:
dsig:SignatureType, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" ref="dsig:Signature"/>
expiryTimestamp
Type:
xsd:dateTime, predefined, simple content
The date and time (on the source system) when this message instance will be considered expired.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="expiryTimestamp" type="xsd:dateTime"/>
implementationSpecification
Type:
ImplementationSpecification, complex content
The version(s) of specifications that the sender asserts the message was developed for.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="implementationSpecification" type="ImplementationSpecification"/>
partyMessageInformation
Type:
PartyMessageInformation, complex content
Additional message information that may be provided by each involved party.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyMessageInformation" type="PartyMessageInformation"/>
sendTo
Type:
MessageAddress, simple content
A unique identifier (within its coding scheme) indicating an intended recipent of a message.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="sendTo" type="MessageAddress"/>
sentBy
Type:
MessageAddress, simple content
The unique identifier (within its coding scheme) for the originator of a message instance.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="sentBy" type="MessageAddress"/>
