group "OptionDenomination.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-option-shared-5-4.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

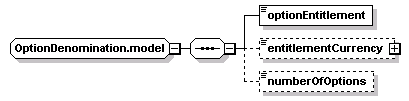

Content Model Diagram
Complex Content Model
optionEntitlement, entitlementCurrency?, numberOfOptions?
Content Model Elements (3):
entitlementCurrency,
numberOfOptions (defined in OptionDenomination.model group),
optionEntitlement (defined in OptionDenomination.model group)
Known Usage Locations
Annotation
A model group containing the option denomination components.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="OptionDenomination.model">
<xsd:sequence>
<xsd:element name="optionEntitlement" type="PositiveDecimal"/>
<xsd:element minOccurs="0" name="entitlementCurrency" type="Currency"/>
<xsd:element minOccurs="0" name="numberOfOptions" type="PositiveDecimal"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
entitlementCurrency
Type:
Currency, simple content
TODO
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="entitlementCurrency" type="Currency"/>
numberOfOptions
Type:
PositiveDecimal, simple content
The number of options comprised in the option transaction.
Simple Content
xsd:decimal
minExclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="numberOfOptions" type="PositiveDecimal"/>
optionEntitlement
Type:
PositiveDecimal, simple content
The number of units of underlyer per option comprised in the option transaction.
Simple Content
xsd:decimal
minExclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="optionEntitlement" type="PositiveDecimal"/>
