group "OptionSettlement.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
4 elements
Defined:
globally in fpml-option-shared-5-4.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 2 locations

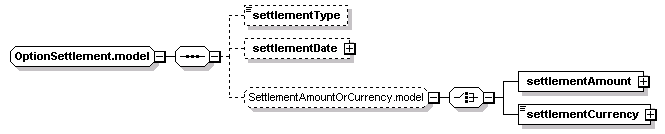

Content Model Diagram
Complex Content Model
settlementType?, settlementDate?, (settlementAmount | settlementCurrency)?
Content Model Elements (4):
settlementAmount (defined in SettlementAmountOrCurrency.model group),
settlementCurrency (defined in SettlementAmountOrCurrency.model group),
settlementDate (defined in OptionSettlement.model group),
settlementType (defined in OptionSettlement.model group)
Known Usage Locations
Annotation
A group which has Option Settlement elements.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="OptionSettlement.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="settlementType" type="SettlementTypeEnum"/>
<xsd:element minOccurs="0" name="settlementDate" type="AdjustableOrRelativeDate"/>
<xsd:group minOccurs="0" ref="SettlementAmountOrCurrency.model"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/4)
settlementDate
Type:
AdjustableOrRelativeDate, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="settlementDate" type="AdjustableOrRelativeDate"/>
settlementType
Type:
SettlementTypeEnum, simple content
Simple Content
("Cash" | "Physical") | "Election"
XML Source (see within schema source)
<xsd:element minOccurs="0" name="settlementType" type="SettlementTypeEnum"/>
