element <novation> (local)
Namespace:
http://www.fpml.org/FpML-5/pretrade
Type:
TradeNovationContent
Content:
complex, 33 elements
Defined:
locally witnin Events.model group in fpml-business-events-5-5.xsd; see XML source

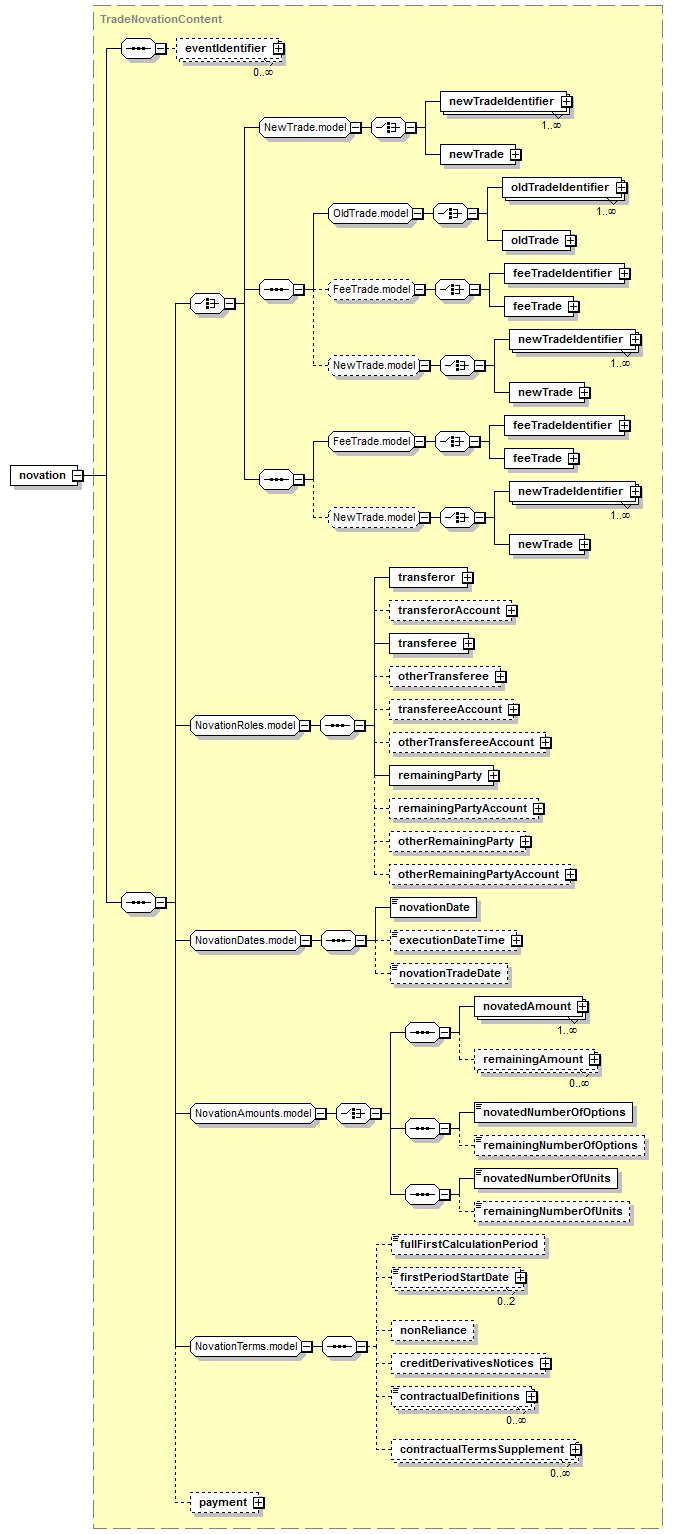

Content Model Diagram
XML Representation Summary
<novation>

Content:
 eventIdentifier*, (newTradeIdentifier+ | newTrade | ((oldTradeIdentifier+ | oldTrade), (feeTradeIdentifier | feeTrade)?, (newTradeIdentifier+ | newTrade)?) | ((feeTradeIdentifier | feeTrade), (newTradeIdentifier+ | newTrade)?)), transferor, transferorAccount?, transferee, otherTransferee?, transfereeAccount?, otherTransfereeAccount?, remainingParty, remainingPartyAccount?, otherRemainingParty?, otherRemainingPartyAccount?, novationDate, executionDateTime?, novationTradeDate?, ((novatedAmount+, remainingAmount*) | (novatedNumberOfOptions, remainingNumberOfOptions?) | (novatedNumberOfUnits, remainingNumberOfUnits?)), fullFirstCalculationPeriod?, firstPeriodStartDate[0..2], nonReliance?, creditDerivativesNotices?, contractualDefinitions*, contractualTermsSupplement*, payment?
</novation>
Content model elements (33):
contractualDefinitions (in novation),
eventIdentifier (defined in AbstractEvent complexType),
 oldTrade (in novation),
Included in content model of elements (1):
requestLimitCheck
XML Source (see within schema source)
<xsd:element name="novation" type="TradeNovationContent"/>
