complexType "ds:KeyInfoType"
Namespace:
http://www.w3.org/2000/09/xmldsig#
Content:
mixed (allows character data), 1 attribute, 7 elements, elem. wildcard
Defined:
globally in xmldsig-core-schema.xsd; see XML source
Includes:
definitions of 1 attribute, 7 elements, elem. wildcard
Used:
at 1 location

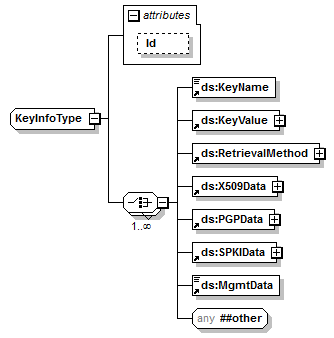

Content Model Diagram
XML Representation Summary
<...

Id
 =
 ID
    >

Content:
 {text} × (ds:KeyName | ds:KeyValue | ds:RetrievalMethod | ds:X509Data | ds:PGPData | ds:SPKIData | ds:MgmtData | {any})+
</...>
Content Model Elements (7):
ds:KeyName, ds:KeyValue, ds:MgmtData, ds:PGPData, ds:RetrievalMethod, ds:SPKIData, ds:X509Data
All Direct / Indirect Based Elements (1):
ds:KeyInfo
Known Usage Locations
XML Source (see within schema source)
<complexType mixed="true" name="KeyInfoType">
<choice maxOccurs="unbounded">
<element ref="ds:KeyName"/>
<element ref="ds:KeyValue"/>
<element ref="ds:RetrievalMethod"/>
<element ref="ds:X509Data"/>
<element ref="ds:PGPData"/>
<element ref="ds:SPKIData"/>
<element ref="ds:MgmtData"/>
<any namespace="##other" processContents="lax"/>
<!-- (1,1) elements from (0,unbounded) namespaces -->
</choice>
<attribute name="Id" type="ID" use="optional"/>
</complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
Id
Type:
ID, predefined
Use:
optional
XML Source (see within schema source)
<attribute name="Id" type="ID" use="optional"/>
Content Element Detail (all declarations; defined within this component only; 8/8)
ds:KeyName
Type:
string, predefined, simple content
XML Source (see within schema source)
<element ref="ds:KeyName"/>
ds:KeyValue
Type:
ds:KeyValueType, mixed content
XML Source (see within schema source)
<element ref="ds:KeyValue"/>
ds:MgmtData
Type:
string, predefined, simple content
XML Source (see within schema source)
<element ref="ds:MgmtData"/>
ds:PGPData
Type:
ds:PGPDataType, complex content
XML Source (see within schema source)
<element ref="ds:PGPData"/>
ds:RetrievalMethod
Type:
ds:RetrievalMethodType, complex content
XML Source (see within schema source)
<element ref="ds:RetrievalMethod"/>
ds:SPKIData
Type:
ds:SPKIDataType, complex content
XML Source (see within schema source)
<element ref="ds:SPKIData"/>
ds:X509Data
Type:
ds:X509DataType, complex content
XML Source (see within schema source)
<element ref="ds:X509Data"/>
{any element with non-schema namespace}
XML Source (see within schema source)
<any namespace="##other" processContents="lax"/>
