element <commodity> (global)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
Commodity
Content:
complex, 1 attribute, 4 elements
Subst.Gr:
may substitute for element underlyingAsset
Defined:
globally in fpml-asset-5-5.xsd; see XML source
Used:
at 2 locations

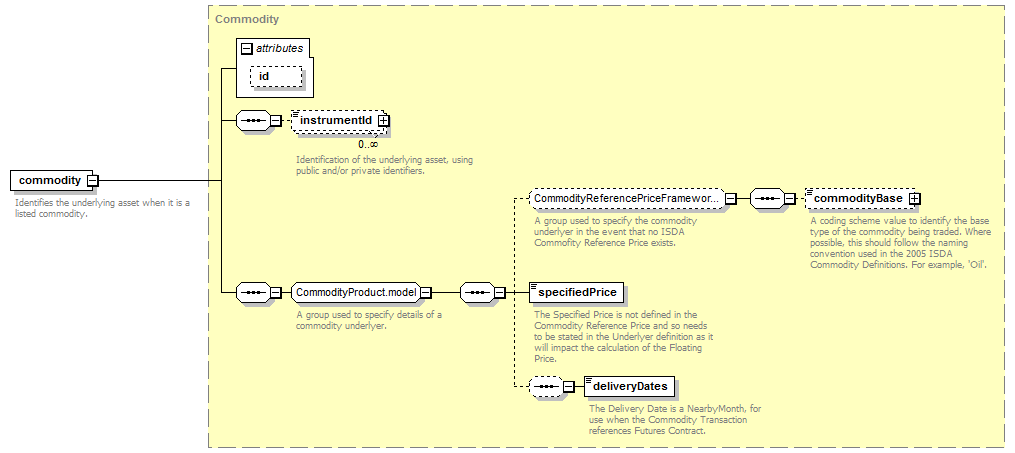

Content Model Diagram
XML Representation Summary
<commodity

id
 =
 xsd:ID
    >

Content:
 instrumentId*, commodityBase??, specifiedPrice, deliveryDates?
</commodity>
Content model elements (4):
commodityBase, instrumentId (defined in IdentifiedAsset complexType),
Included in content model of elements (2):
averagePriceLeg, floatingStrikePricePerUnit
May be included in elements by substitutions (3):
basketConstituent, underlyer (defined in GenericProduct complexType)
Known Usage Locations
Annotation
Identifies the underlying asset when it is a listed commodity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodity" substitutionGroup="underlyingAsset" type="Commodity"/>
