element <fra> (global)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
Fra
Content:
complex, 1 attribute, 13 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-ird-5-5.xsd; see XML source
Used:
never

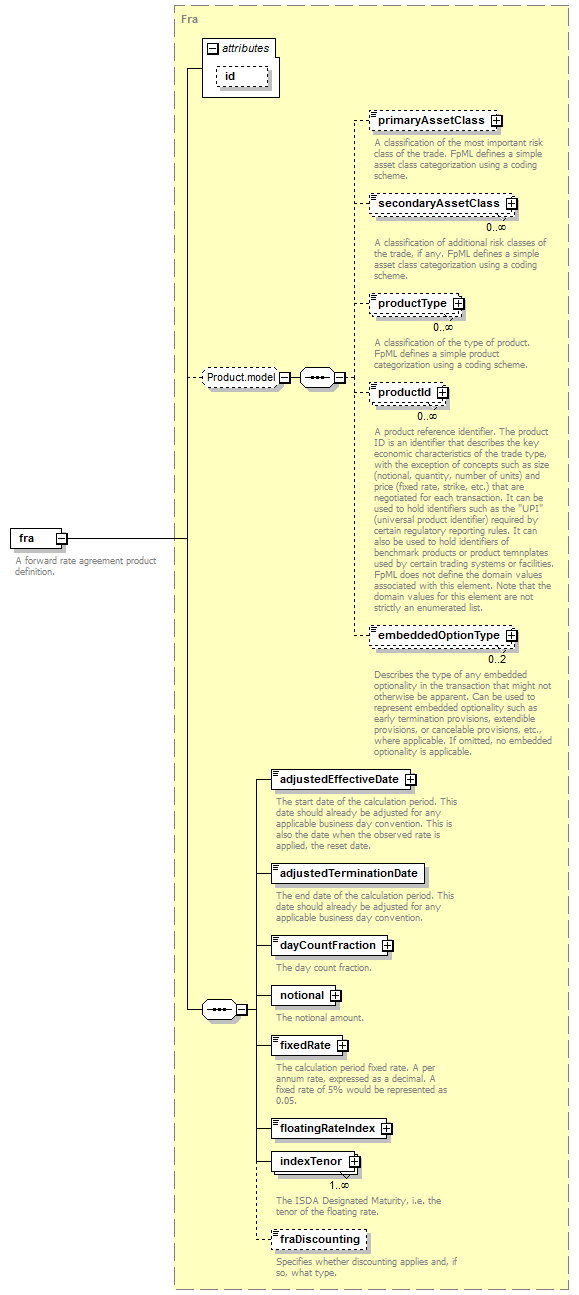

Content Model Diagram
XML Representation Summary
<fra

id
 =
 xsd:ID
    >

Content:
 (primaryAssetClass?, secondaryAssetClass*, productType*, productId*, embeddedOptionType[0..2])?, adjustedEffectiveDate, adjustedTerminationDate, dayCountFraction, notional, fixedRate, floatingRateIndex, indexTenor+, fraDiscounting?
</fra>
Content model elements (13):
adjustedEffectiveDate, indexTenor (in fra),
primaryAssetClass (defined in Product.model group),
productType (defined in Product.model group),
May be included in elements by substitutions (14):
feeTrade,
originalTrade (defined in OptionExercise complexType),
originalTrade (defined in TradeChangeBase complexType),
physicalSettlement (defined in OptionExercise complexType),
 resultingTrade,
trade (defined in Events.model group),
trade (defined in ImpliedTrade complexType),
Annotation
A forward rate agreement product definition.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fra" substitutionGroup="product" type="Fra"/>
