complexType "ClearingConfirmed"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 25 elements
Defined:	globally in fpml-confirmation-processes-5-5.xsd; see XML source
Used:	at 1 location

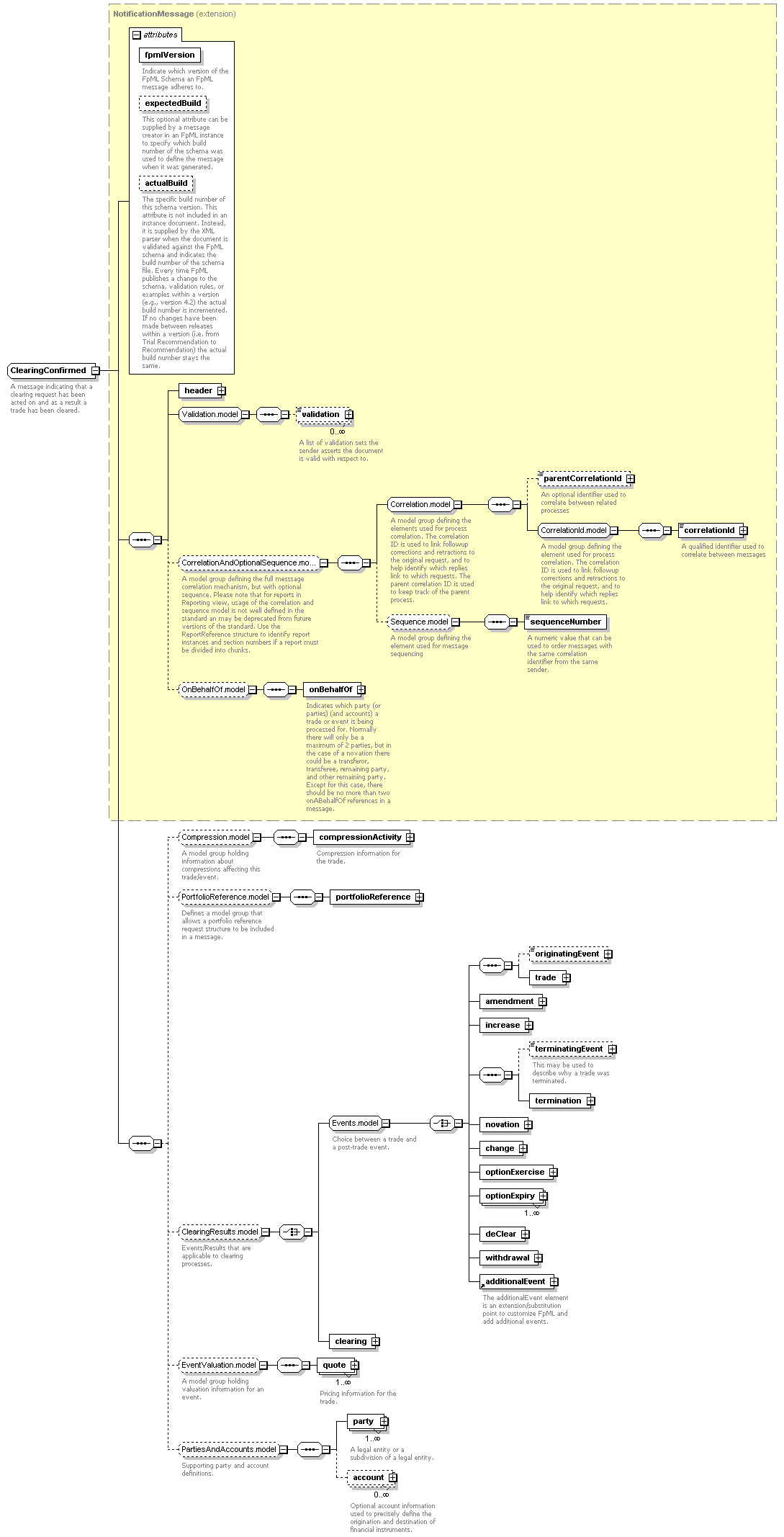

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"6"

Content:

</...>

Content Model Elements (25):

account,

additionalEvent,

amendment,

change (defined in Events.model group),

header (defined in NotificationMessage complexType),

increase,

novation,

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise,

optionExpiry (defined in Events.model group),

originatingEvent (defined in Events.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

portfolioReference (defined in PortfolioReference.model group),

quote (defined in EventValuation.model group),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in Events.model group),

termination,

trade (defined in Events.model group),

validation,

withdrawal

All Direct / Indirect Based Elements (1):

clearingConfirmed

Known Usage Locations

As direct type of elements (1):
clearingConfirmed

Annotation

A message indicating that a clearing request has been acted on and as a result a trade has been cleared.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

NotificationMessage (extension)

ClearingConfirmed

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="ClearingConfirmed">

<xsd:complexContent>

<xsd:extension base="NotificationMessage">

<xsd:sequence>

<xsd:group minOccurs="0" ref="Compression.model"/>

<xsd:group minOccurs="0" ref="PortfolioReference.model"/>

<xsd:group minOccurs="0" ref="ClearingResults.model"/>

<xsd:group minOccurs="0" ref="EventValuation.model"/>

<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
