group "GenericCommodityAttributes.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
7 elements
Defined:
globally in fpml-generic-5-5.xsd; see XML source
Includes:
definitions of 7 elements
Used:
at 1 location

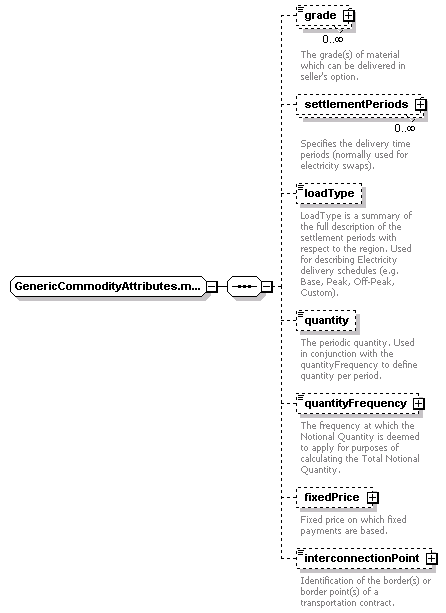

Content Model Diagram
Complex Content Model
grade*, settlementPeriods*, loadType?, quantity?, quantityFrequency?, fixedPrice?, interconnectionPoint?
Content Model Elements (7):
fixedPrice (defined in GenericCommodityAttributes.model group),
grade (defined in GenericCommodityAttributes.model group),
interconnectionPoint (defined in GenericCommodityAttributes.model group),
loadType (defined in GenericCommodityAttributes.model group),
quantity (defined in GenericCommodityAttributes.model group),
quantityFrequency (defined in GenericCommodityAttributes.model group),
settlementPeriods (defined in GenericCommodityAttributes.model group)
Known Usage Locations
XML Source (w/o annotations (7); see within schema source)
<xsd:group name="GenericCommodityAttributes.model">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="grade" type="GenericCommodityGrade"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementPeriods" type="GenericCommodityDeliveryPeriod"/>
<xsd:element minOccurs="0" name="loadType" type="LoadTypeEnum"/>
<xsd:element minOccurs="0" name="quantity" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="quantityFrequency" type="CommodityQuantityFrequency"/>
<xsd:element minOccurs="0" name="fixedPrice" type="FixedPrice"/>
<xsd:element minOccurs="0" name="interconnectionPoint" type="InterconnectionPoint"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 7/7)
fixedPrice
Type:
FixedPrice, complex content
Fixed price on which fixed payments are based.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fixedPrice" type="FixedPrice"/>
grade
Type:
GenericCommodityGrade, simple content
The grade(s) of material which can be delivered in seller's option.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="grade" type="GenericCommodityGrade"/>
interconnectionPoint
Type:
InterconnectionPoint, simple content
Identification of the border(s) or border point(s) of a transportation contract.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="interconnectionPoint" type="InterconnectionPoint"/>
loadType
Type:
LoadTypeEnum, simple content
LoadType is a summary of the full description of the settlement periods with respect to the region. Used for describing Electricity delivery schedules (e.g. Base, Peak, Off-Peak, Custom).
Simple Content
enumeration of xsd:token
Enumeration:
"Base"
 -
 Base
"Peak"
 -
 Peak
"OffPeak"
 -
 Off-Peak
"BlockHours"
 -
 Block Hours
"Custom"
 -
 Anything that does not fall under the predefined standard categories
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="loadType" type="LoadTypeEnum"/>
quantity
Type:
xsd:decimal, predefined, simple content
The periodic quantity. Used in conjunction with the quantityFrequency to define quantity per period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="quantity" type="xsd:decimal"/>
quantityFrequency
Type:
CommodityQuantityFrequency, simple content
The frequency at which the Notional Quantity is deemed to apply for purposes of calculating the Total Notional Quantity.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="quantityFrequency" type="CommodityQuantityFrequency"/>
settlementPeriods
Type:
GenericCommodityDeliveryPeriod, complex content
Specifies the delivery time periods (normally used for electricity swaps).
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementPeriods" type="GenericCommodityDeliveryPeriod"/>
