complexType "BusinessCenterTime"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 2 elements
Defined:
globally in fpml-shared-5-5.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 31 locations

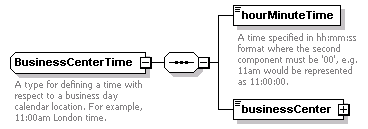

Content Model Diagram
XML Representation Summary
<...>

Content:
 hourMinuteTime, businessCenter
</...>
Content Model Elements (2):
businessCenter (defined in BusinessCenterTime complexType), hourMinuteTime (defined in BusinessCenterTime complexType)
All Direct / Indirect Based Elements (31):
cashSettlementValuationTime,
earliestExecutionTime,
earliestExerciseTime (in americanExercise),
earliestExerciseTime (in bermudaExercise),
earliestExerciseTime (in europeanExercise),
equityExpirationTime,
expirationTime (in americanExercise defined in CommodityExercise complexType),
expirationTime (in americanExercise),
expirationTime (in bermudaExercise),
expirationTime (in europeanExercise defined in CommodityExercise complexType),
expirationTime (in europeanExercise),
expiryTime (defined in FxDigitalAmericanExercise complexType),
expiryTime (defined in FxEuropeanExercise complexType),
fixingTime (defined in CommodityFx complexType),
fixingTime (defined in CommodityFx complexType),
fixingTime (defined in FxSpotRateSource complexType),
fixingTime (in asian in features in fxOption),
fixingTime (in dualCurrency),
fixingTime (in nonstandardSettlementRate),
latestExecutionTime,
latestExerciseTime (defined in SharedAmericanExercise complexType),
latestExerciseTime (in americanExercise defined in CommodityExercise complexType),
latestExerciseTime (in americanExercise),
latestExerciseTime (in bermudaExercise),
observationEndTime (defined in FxBarrierFeature complexType),
observationEndTime (in touch),
observationStartTime (defined in FxBarrierFeature complexType),
observationStartTime (in touch),
time (defined in FxBusinessCenterDateTime complexType),
valuationTime (defined in EquityValuation complexType),
valuationTime (in cashSettlementTerms)
Known Usage Locations
Annotation
A type for defining a time with respect to a business day calendar location. For example, 11:00am London time.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="BusinessCenterTime">
<xsd:sequence>
<xsd:element name="hourMinuteTime" type="HourMinuteTime"/>
<xsd:element name="businessCenter" type="BusinessCenter"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/2)
businessCenter
Type:
BusinessCenter, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element name="businessCenter" type="BusinessCenter"/>
hourMinuteTime
Type:
HourMinuteTime, simple content
A time specified in hh:mm:ss format where the second component must be '00', e.g. 11am would be represented as 11:00:00.
Simple Content
xsd:time
Pattern:
 [0-2][0-9]:[0-5][0-9]:00
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="hourMinuteTime" type="HourMinuteTime"/>
