complexType "MoneyBase"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 1 element
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-shared-5-5.xsd; see XML source
Includes:
definitions of 1 attribute, 1 element
Used:
at 3 locations

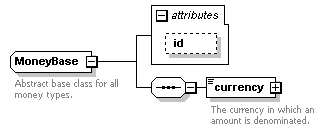

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 currency
</...>
Content Model Elements (1):
currency (defined in MoneyBase complexType)
Known Direct Subtypes (3):
Money, NonNegativeMoney, PositiveMoney
Known Indirect Subtypes (5):
CalculationAmount, CommoditySpread, FutureValueAmount, FxOptionPayout, NotionalAmount
All Direct / Indirect Based Elements (88):
accruedInterest (defined in PendingPayment complexType),
allocatedNotional,
amount (defined in PendingPayment complexType),
basketAmount,
brokerageFee,
calculationAmount (defined in ProtectionTerms complexType),
calculationAmount (in fixedAmountCalculation),
callCurrencyAmount,
cashflowAmount,
cashSettlementAmount,
changeInNotionalAmount (defined in TradeLegNotionalChange.model group),
changeInNotionalAmount (defined in TradeNotionalChange.model group),
contractRate,
contractRateStep,
creditChargeAmount,
defaultRequirement,
dividend,
exerciseInNotionalAmount,
factoredCalculationAmount,
fixedAmount (in periodicPayment),
fixedAmount (in singlePayment),
flatRateAmount,
forecastAmount,
forecastPaymentAmount,
forwardPrice,
futureValueNotional,
interest,
maximumNotionalAmount (in multipleExercise in americanExercise in fxOption),
maximumPaymentAmount,
maximumTransactionPaymentAmount,
minimumExecutionAmount,
minimumNotionalAmount (in multipleExercise in americanExercise in fxOption),
minimumQuotationAmount,
nominal,
notional (defined in EquityDerivativeBase complexType),
notional (in fra),
notionalAmount (defined in FxCashSettlement complexType),
notionalAmount (defined in OptionBaseExtended complexType),
notionalAmount (defined in ReturnSwapNotional complexType),
notionalAmount (in correlation),
notionalAmount (in fxFlexibleForward),
novatedAmount,
outstandingNotionalAmount (defined in TradeLegNotionalChange.model group),
outstandingNotionalAmount (defined in TradeNotionalChange.model group),
outstandingNotionalAmount (in optionExercise),
partialExerciseAmount,
paymentAmount (defined in EquityPremium complexType),
paymentAmount (defined in NonNegativePayment complexType),
paymentAmount (defined in Payment complexType),
paymentAmount (defined in PaymentDetails.model group),
paymentAmount (defined in PositivePayment complexType),
paymentAmount (defined in SimplePayment complexType),
paymentAmount (in additionalPaymentAmount),
paymentAmount (in adjustedPaymentDates),
paymentAmount (in fixedPayment),
paymentAmount (in initialPayment),
paymentAmount (in paymentDetail),
paymentAmount (in paymentDetail),
paymentRequirement,
payout,
premiumPerUnit,
prePaymentAmount,
presentValueAmount (defined in Payment complexType),
presentValueAmount (in paymentCalculationPeriod),
presentValueAmount (in premium defined in OptionBaseExtended complexType),
presentValuePrincipalExchangeAmount,
pricePerOption (defined in EquityPremium complexType),
pricePerOption (in premium defined in OptionBaseExtended complexType),
principal (in termDeposit),
principalAmount (in principalExchangeAmount in principalExchangeDescriptions),
putCurrencyAmount,
quotationAmount,
remainingAmount,
settlementAmount (defined in EquityOptionTermination complexType),
settlementAmount (defined in SettlementAmountOrCurrency.model group),
splitSettlementAmount,
spread (defined in FloatingLegCalculation complexType),
spreadStep,
strikePricePerUnit,
strikePricePerUnitStep,
stubAmount,
totalPrice (in fixedLeg in commodityForward),
totalPrice (in fixedLeg),
underlyerNotional,
value (in collateralValueAllocation),
varianceAmount,
weatherNotionalAmount (in commodityOption),
weatherNotionalAmount (in weatherLeg)
Known Usage Locations
Annotation
Abstract base class for all money types.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="MoneyBase">
<xsd:sequence>
<xsd:element name="currency" type="Currency"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 1/1)
currency
Type:
Currency, simple content
The currency in which an amount is denominated.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="currency" type="Currency"/>
