complexType "Product"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 5 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-shared-5-6.xsd; see XML source
Includes:
definition of 1 attribute
Used:
at 25 locations

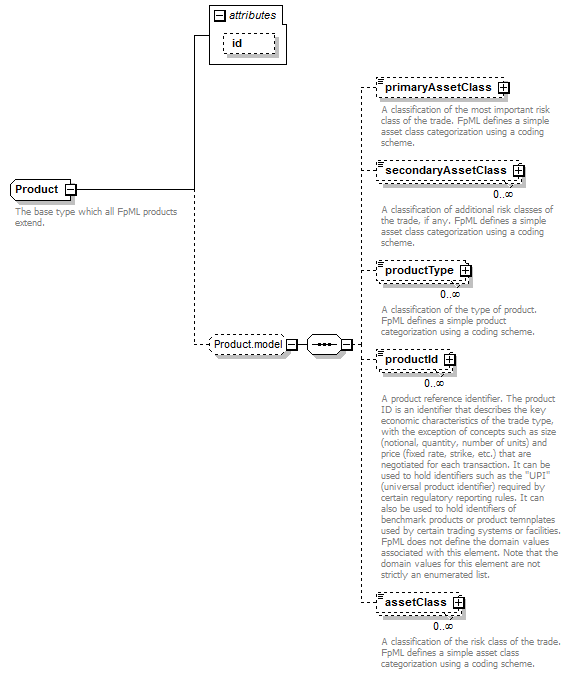

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 (primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?
</...>
Content Model Elements (5):
assetClass,
productId (defined in Product.model group),
 productType (defined in Product.model group),
Known Direct Subtypes (24):
BulletPayment, CapFloor, CommodityForward, CommodityOption, CommoditySwap, CommoditySwaption, CreditDefaultSwap, DividendSwapTransactionSupplement, EquityDerivativeBase, Fra, FxFlexibleForward, FxSingleLeg, FxSwap, GenericProduct, InstrumentTradeDetails, NettedSwapBase, Option, ReturnSwapBase, StandardProduct, Strategy, Swap, Swaption, TermDeposit, VarianceSwapTransactionSupplement
Known Indirect Subtypes (18):
BondOption, BrokerEquityOption, CorrelationSwap, CreditDefaultSwapOption, DividendSwapOptionTransactionSupplement, EquityDerivativeLongFormBase, EquityDerivativeShortFormBase, EquityForward, EquityOption, EquityOptionTransactionSupplement, EquitySwapTransactionSupplement, FxDigitalOption, FxOption, OptionBase, OptionBaseExtended, ReturnSwap, VarianceOptionTransactionSupplement, VarianceSwap
All Direct / Indirect Based Elements (40):
bondOption,
brokerEquityOption,
bulletPayment,
capFloor,
commodityForward,
commodityOption,
commoditySwap,
commoditySwaption,
correlationSwap,
creditDefaultSwap,
creditDefaultSwap (in creditDefaultSwapOption),
creditDefaultSwapOption,
dividendSwapOptionTransactionSupplement,
dividendSwapTransactionSupplement,
dividendSwapTransactionSupplement (in dividendSwapOptionTransactionSupplement),
equityForward,
equityOption,
equityOptionTransactionSupplement,
equitySwapTransactionSupplement,
fra,
fxDigitalOption,
fxFlexibleForward,
fxOption,
fxSingleLeg,
fxSwap,
genericProduct,
instrumentTradeDetails,
nonSchemaProduct,
product,
returnSwap,
standardProduct,
strategy,
swap,
swap (in swaption),
swaption,
termDeposit,
varianceOptionTransactionSupplement,
varianceSwap,
varianceSwapTransactionSupplement,
varianceSwapTransactionSupplement (in varianceOptionTransactionSupplement)
Known Usage Locations
Annotation
The base type which all FpML products extend.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType abstract="true" name="Product">
<xsd:group minOccurs="0" ref="Product.model"/>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
