group "CommodityWeatherOption.model"

Namespace:	http://www.fpml.org/FpML-5/recordkeeping
Content:	8 elements
Defined:	globally in fpml-com-5-6.xsd; see XML source
Includes:	definitions of 6 elements
Used:	at 1 location

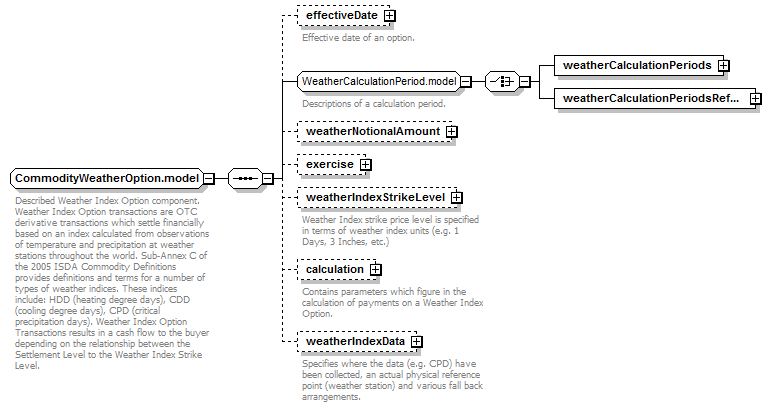

Content Model Diagram

Complex Content Model

effectiveDate?, (weatherCalculationPeriods | weatherCalculationPeriodsReference), weatherNotionalAmount?, exercise?, weatherIndexStrikeLevel?, calculation?, weatherIndexData?

Content Model Elements (8):

calculation (in commodityOption),

effectiveDate (in commodityOption),

exercise (in commodityOption),

weatherCalculationPeriods,

weatherCalculationPeriodsReference,

weatherIndexData (in commodityOption),

weatherIndexStrikeLevel,

weatherNotionalAmount (in commodityOption)

Known Usage Locations

In definitions of global complexTypes (1):
CommodityOption

Annotation

Described Weather Index Option component. Weather Index Option transactions are OTC derivative transactions which settle financially based on an index calculated from observations of temperature and precipitation at weather stations throughout the world. Sub-Annex C of the 2005 ISDA Commodity Definitions provides definitions and terms for a number of types of weather indices. These indices include: HDD (heating degree days), CDD (cooling degree days), CPD (critical precipitation days). Weather Index Option Transactions results in a cash flow to the buyer depending on the relationship between the Settlement Level to the Weather Index Strike Level.

XML Source (w/o annotations (5); see within schema source)

<xsd:group name="CommodityWeatherOption.model">

<xsd:sequence>

<xsd:element minOccurs="0" name="effectiveDate" type="AdjustableOrRelativeDate"/>

<xsd:group ref="WeatherCalculationPeriod.model"/>

<xsd:element minOccurs="0" name="weatherNotionalAmount" type="NonNegativeMoney"/>

<xsd:element minOccurs="0" name="exercise" type="CommodityExercise"/>

<xsd:element minOccurs="0" name="weatherIndexStrikeLevel" type="WeatherIndex"/>

<xsd:element minOccurs="0" name="calculation" type="WeatherLegCalculation"/>

<xsd:element minOccurs="0" name="weatherIndexData" type="WeatherIndexData"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 6/8)

calculation

Type:

WeatherLegCalculation, complex content

Contains parameters which figure in the calculation of payments on a Weather Index Option.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="calculation" type="WeatherLegCalculation"/>

effectiveDate

Type:

AdjustableOrRelativeDate, complex content

Effective date of an option.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="effectiveDate" type="AdjustableOrRelativeDate"/>

exercise

Type:

CommodityExercise, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="exercise" type="CommodityExercise"/>

weatherIndexData

Type:

WeatherIndexData, complex content

Specifies where the data (e.g. CPD) have been collected, an actual physical reference point (weather station) and various fall back arrangements.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="weatherIndexData" type="WeatherIndexData"/>

weatherIndexStrikeLevel

Type:

WeatherIndex, complex content

Weather Index strike price level is specified in terms of weather index units (e.g. 1 Days, 3 Inches, etc.)

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="weatherIndexStrikeLevel" type="WeatherIndex"/>

weatherNotionalAmount

Type:

NonNegativeMoney, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="weatherNotionalAmount" type="NonNegativeMoney"/>
