group "OptionExerciseAmount.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
8 elements
Defined:
globally in fpml-business-events-5-6.xsd; see XML source
Includes:
definitions of 8 elements
Used:
at 2 locations

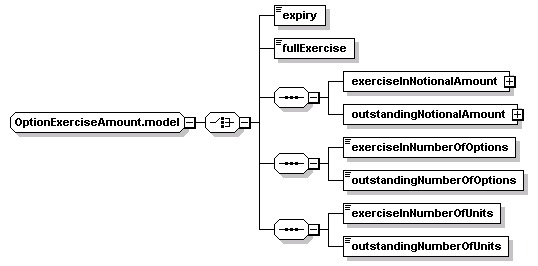

Content Model Diagram
Complex Content Model
expiry | fullExercise | (exerciseInNotionalAmount, outstandingNotionalAmount) | (exerciseInNumberOfOptions, outstandingNumberOfOptions) | (exerciseInNumberOfUnits, outstandingNumberOfUnits)
Content Model Elements (8):
exerciseInNotionalAmount,
exerciseInNumberOfOptions,
exerciseInNumberOfUnits,
expiry,
fullExercise,
outstandingNotionalAmount (defined in OptionExerciseAmount.model group),
outstandingNumberOfOptions (defined in OptionExerciseAmount.model group),
outstandingNumberOfUnits (defined in OptionExerciseAmount.model group)
Known Usage Locations
XML Source (w/o annotations (6); see within schema source)
<xsd:group name="OptionExerciseAmount.model">
<xsd:choice>
<xsd:element name="expiry" type="xsd:boolean"/>
<xsd:element name="fullExercise" type="xsd:boolean"/>
<xsd:sequence>
<xsd:element name="exerciseInNotionalAmount" type="Money"/>
<xsd:element name="outstandingNotionalAmount" type="Money"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="exerciseInNumberOfOptions" type="xsd:decimal"/>
<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="exerciseInNumberOfUnits" type="xsd:decimal"/>
<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>
</xsd:sequence>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 8/8)
exerciseInNotionalAmount
Type:
Money, complex content
Specifies the fixed amount by which the option should be exercised expressed as notional amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNotionalAmount" type="Money"/>
exerciseInNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the option should be exercised expressed as number of options.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNumberOfOptions" type="xsd:decimal"/>
exerciseInNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the option should be exercised express as number of units.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNumberOfUnits" type="xsd:decimal"/>
expiry
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element name="expiry" type="xsd:boolean"/>
fullExercise
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element name="fullExercise" type="xsd:boolean"/>
outstandingNotionalAmount
Type:
Money, complex content
Specifies the Notional amount after the Change
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNotionalAmount" type="Money"/>
outstandingNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Options after the Change.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>
outstandingNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Units
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>
XML schema documentation generated with DocFlex/XML 1.8.6b2 using DocFlex/XML XSDDoc 2.5.1 template set. All content model diagrams generated by Altova XMLSpy via DocFlex/XML XMLSpy Integration.
