complexType "OrderStatus"
Namespace:
http://www.fpml.org/FpML-5/pretrade
Content:
complex, 16 elements
Defined:
globally in fpml-pretrade-processes-5-6.xsd; see XML source
Includes:
definitions of 16 elements
Used:
at 1 location

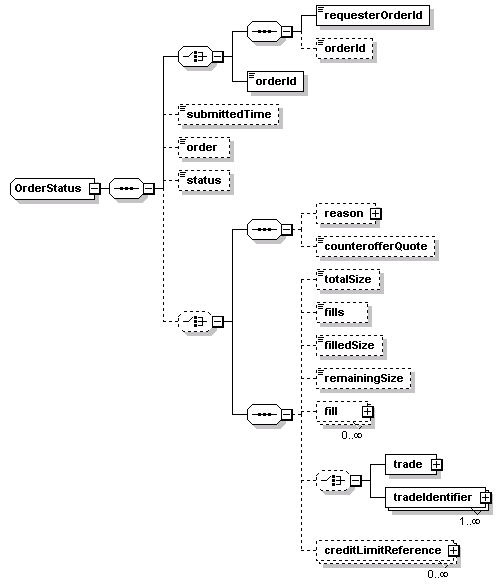

Content Model Diagram
XML Representation Summary
<...>

Content:
 ((requesterOrderId, orderId?) | orderId), submittedTime?, order?, status?, ((reason?, counterofferQuote?) | (totalSize?, fills?, filledSize?, remainingSize?, fill*, (trade | tradeIdentifier+)?, creditLimitReference*))?
</...>
Content Model Elements (16):
counterofferQuote, reason (in orderStatus),
All Direct / Indirect Based Elements (1):
orderStatus
Known Usage Locations
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="OrderStatus">
<xsd:sequence>
<xsd:choice>
<xsd:sequence>
<xsd:element name="requesterOrderId" type="xsd:normalizedString"/>
<!-- orderer's ID -->
<xsd:element minOccurs="0" name="orderId" type="xsd:normalizedString"/>
<!-- SEF's order ID -->
</xsd:sequence>
<xsd:element name="orderId" type="xsd:normalizedString"/>
<!-- SEF's order ID -->
</xsd:choice>
<xsd:element minOccurs="0" name="submittedTime" type="xsd:dateTime"/>
<xsd:element minOccurs="0" name="order" type="xsd:string"/>
<!-- echo back the order / DUMMY placeholder -->
<xsd:element minOccurs="0" name="status" type="OrderStatusEnum"/>
<xsd:choice minOccurs="0">
<xsd:sequence>
<xsd:element minOccurs="0" name="reason" type="Reason"/>
<!-- reason for a rejected quote -->
<xsd:element minOccurs="0" name="counterofferQuote" type="xsd:string"/>
<!-- supply a counter-offer quote, e.g. if order is rejected / DUMMY placeholder -->
</xsd:sequence>
<xsd:sequence>
<xsd:element minOccurs="0" name="totalSize" type="xsd:decimal"/>
<!-- number of units of the product being ordered -->
<xsd:element minOccurs="0" name="fills" type="xsd:integer"/>
<!-- number of fills so far -->
<xsd:element minOccurs="0" name="filledSize" type="xsd:decimal"/>
<!-- number of units of the product filled so far -->
<xsd:element minOccurs="0" name="remainingSize" type="xsd:decimal"/>
<!-- number of units of the product remaining to be filled -->
<xsd:element maxOccurs="unbounded" minOccurs="0" name="fill" type="OrderFill"/>
<!-- info about the fills -->
<xsd:choice minOccurs="0">
<xsd:element name="trade" type="Trade"/>
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="TradeIdentifier"/>
</xsd:choice>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="creditLimitReference" type="CreditLimitReference"/>
</xsd:sequence>
</xsd:choice>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 16/16)
counterofferQuote
Type:
xsd:string, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="counterofferQuote" type="xsd:string"/>
creditLimitReference
Type:
CreditLimitReference, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="creditLimitReference" type="CreditLimitReference"/>
fill
Type:
OrderFill, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="fill" type="OrderFill"/>
filledSize
Type:
xsd:decimal, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="filledSize" type="xsd:decimal"/>
fills
Type:
xsd:integer, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="fills" type="xsd:integer"/>
order
Type:
xsd:string, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="order" type="xsd:string"/>
orderId
Type:
xsd:normalizedString, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="orderId" type="xsd:normalizedString"/>
orderId
Type:
xsd:normalizedString, predefined, simple content
XML Source (see within schema source)
<xsd:element name="orderId" type="xsd:normalizedString"/>
reason
Type:
Reason, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="reason" type="Reason"/>
remainingSize
Type:
xsd:decimal, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="remainingSize" type="xsd:decimal"/>
requesterOrderId
Type:
xsd:normalizedString, predefined, simple content
XML Source (see within schema source)
<xsd:element name="requesterOrderId" type="xsd:normalizedString"/>
status
Type:
OrderStatusEnum, simple content
Simple Content
enumeration of xsd:token
Enumeration:
"Cancelled"
 -
 Order was cancelled/retracted by the submitter.
"Rejected"
 -
 Order was rejected by the recipient.
"Accepted"
 -
 Order has been accepted but not yet acted on.
"Working"
 -
 Order has been partly filled (executed).
"Filled"
 -
 Order has been completely filled.
"Completed"
 -
 Order has been completely filled, and all fills have been fully reported/processed as required.
XML Source (see within schema source)
<xsd:element minOccurs="0" name="status" type="OrderStatusEnum"/>
submittedTime
Type:
xsd:dateTime, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="submittedTime" type="xsd:dateTime"/>
totalSize
Type:
xsd:decimal, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="totalSize" type="xsd:decimal"/>
trade
Type:
Trade, complex content
trade description.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="trade" type="Trade"/>
tradeIdentifier
Type:
TradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="TradeIdentifier"/>
