element <commoditySwaption> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CommoditySwaption
Content:	complex, 1 attribute, 17 elements
Subst.Gr:	may substitute for element product
Defined:	globally in fpml-com-5-6.xsd; see XML source
Used:	never

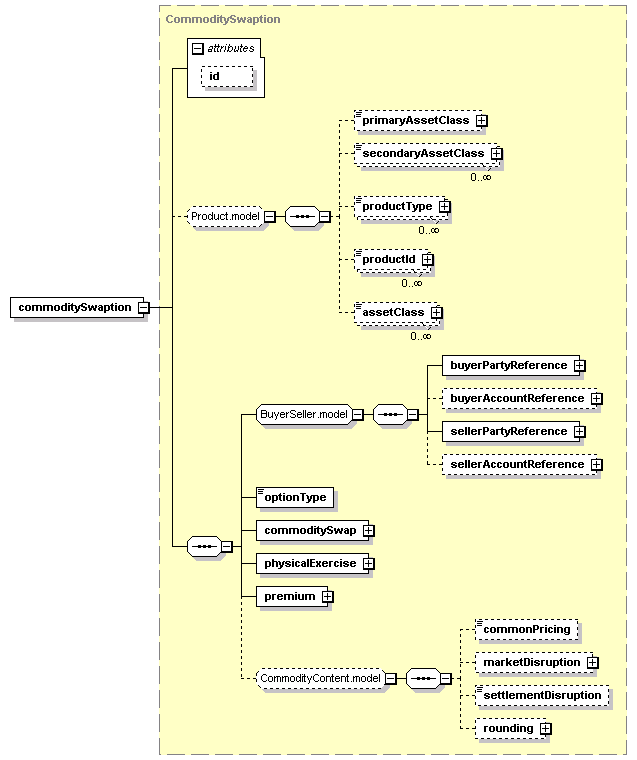

Content Model Diagram

XML Representation Summary

<commoditySwaption

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?, optionType, commoditySwap, physicalExercise, premium, (commonPricing?, marketDisruption?, settlementDisruption?, rounding?)?

</commoditySwaption>

Content model elements (17):

assetClass,

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

commoditySwap (in commoditySwaption),

commonPricing,

marketDisruption (defined in CommodityContent.model group),

optionType (in commoditySwaption),

physicalExercise (in commoditySwaption),

premium (in commoditySwaption),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

rounding (defined in CommodityContent.model group),

secondaryAssetClass,

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group),

settlementDisruption

May be included in elements by substitutions (19):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionExercise),

originalTrade (in optionExpiry defined in Events.model group),

physicalSettlement (in optionExercise),

resultingTrade,

strategy,

trade (defined in DataDocument complexType),

trade (defined in Events.model group),

trade (defined in ImpliedTrade complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (in affectedTransactions),

trade (in amendment),

trade (in clearingStatusItem),

trade (in constituent)

Annotation

Defines a commodity swaption product

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commoditySwaption" substitutionGroup="product" type="CommoditySwaption"/>
