complexType "NonNegativeMoney"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-shared-5-6.xsd; see XML source
Includes:
definition of 1 element
Used:
at 38 locations

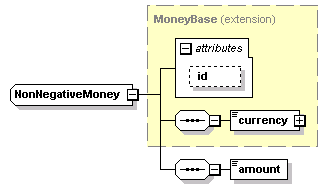

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 currency, amount
</...>
Content Model Elements (2):
amount (defined in NonNegativeMoney complexType), currency (defined in MoneyBase complexType)
Known Direct Subtypes (3):
FutureValueAmount, FxOptionPayout, NotionalAmount
All Direct / Indirect Based Elements (40):
callCurrencyAmount,
changeInNotionalAmount (defined in TradeLegNotionalChange.model group),
changeInNotionalAmount (defined in TradeNotionalChange.model group),
contractRate,
contractRateStep,
dividend,
flatRateAmount,
forwardPrice,
futureValueNotional,
maximumNotionalAmount (in multipleExercise in americanExercise in fxOption),
maximumPaymentAmount,
maximumTransactionPaymentAmount,
minimumNotionalAmount (in multipleExercise in americanExercise in fxOption),
notional (defined in EquityDerivativeBase complexType),
notionalAmount (defined in ReturnSwapNotional complexType),
notionalAmount (in commodityDigitalOption),
notionalAmount (in correlation),
notionalAmount (in notionalAmountBasket),
outstandingNotionalAmount (defined in TradeLegNotionalChange.model group),
outstandingNotionalAmount (defined in TradeNotionalChange.model group),
paymentAmount (defined in EquityPremium complexType),
paymentAmount (defined in NonNegativePayment complexType),
paymentAmount (defined in Payment complexType),
paymentAmount (defined in SimplePayment complexType),
paymentAmount (in additionalPaymentAmount),
paymentAmount (in fixedPayment),
payout,
premiumPerUnit,
prePaymentAmount,
pricePerOption (defined in EquityPremium complexType),
principalAmount (in principalExchangeAmount in principalExchangeDescriptions),
putCurrencyAmount,
settlementAmount (defined in EquityOptionTermination complexType),
strikePricePerUnit,
strikePricePerUnitStep,
totalPrice (in fixedLeg in commodityForward),
totalPrice (in fixedLeg),
varianceAmount,
weatherNotionalAmount (in commodityOption),
weatherNotionalAmount (in weatherLeg)
Known Usage Locations
Annotation
A type defining a non negative money amount.
Type Definition Detail
Type Derivation Tree
MoneyBase (extension)
  NonNegativeMoney
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="NonNegativeMoney">
<xsd:complexContent>
<xsd:extension base="MoneyBase">
<xsd:sequence>
<xsd:element name="amount" type="NonNegativeDecimal"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/2)
amount
Type:
NonNegativeDecimal, simple content
The non negative monetary quantity in currency units.
Simple Content
xsd:decimal
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="amount" type="NonNegativeDecimal"/>
