complexType "CreditLimit"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 10 elements
Defined:	globally in fpml-business-events-5-7.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 1 location

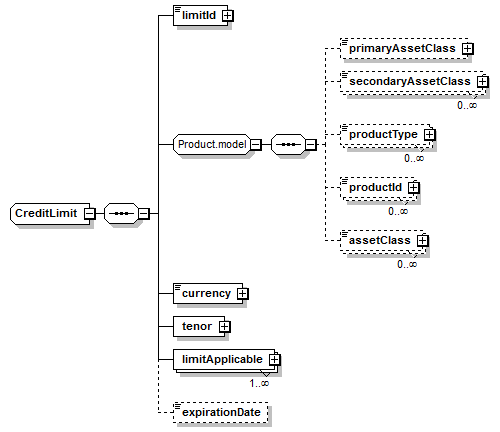

Content Model Diagram

XML Representation Summary

<...>

Content:

limitId, primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*, currency, tenor, limitApplicable+, expirationDate?

</...>

Content Model Elements (10):

assetClass,

currency (in creditLimit),

expirationDate (in creditLimit),

limitApplicable,

limitId,

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass,

tenor (in creditLimit)

All Direct / Indirect Based Elements (1):

creditLimit

Known Usage Locations

As direct type of elements (1):

creditLimit

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="CreditLimit">

<xsd:sequence>

<xsd:element name="limitId" type="LimitId"/>

<xsd:group ref="Product.model"/>

<xsd:element name="currency" type="Currency"/>

<xsd:element name="tenor" type="Period"/>

<xsd:element maxOccurs="unbounded" name="limitApplicable" type="LimitApplicable"/>

<xsd:element minOccurs="0" name="expirationDate" type="xsd:dateTime"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 5/10)

currency

Type:

Currency, simple content

Simple Content

xsd:normalizedString

maxLength:

255

XML Source (see within schema source)

<xsd:element name="currency" type="Currency"/>

expirationDate

Type:

xsd:dateTime, predefined, simple content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="expirationDate" type="xsd:dateTime"/>

limitApplicable

Type:

LimitApplicable, complex content

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" name="limitApplicable" type="LimitApplicable"/>

limitId

Type:

LimitId, simple content

Simple Content

xsd:normalizedString

maxLength:

255

XML Source (see within schema source)

<xsd:element name="limitId" type="LimitId"/>

tenor

Type:

Period, complex content

XML Source (see within schema source)

<xsd:element name="tenor" type="Period"/>
