element <product> (global abstract)

Namespace:	http://www.fpml.org/FpML-5/transparency
Type:	Product
Content:	complex, 1 attribute, 5 elements
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	may be substituted with 30 elements
Defined:	globally in fpml-shared-5-7.xsd; see XML source
Used:	at 32 locations

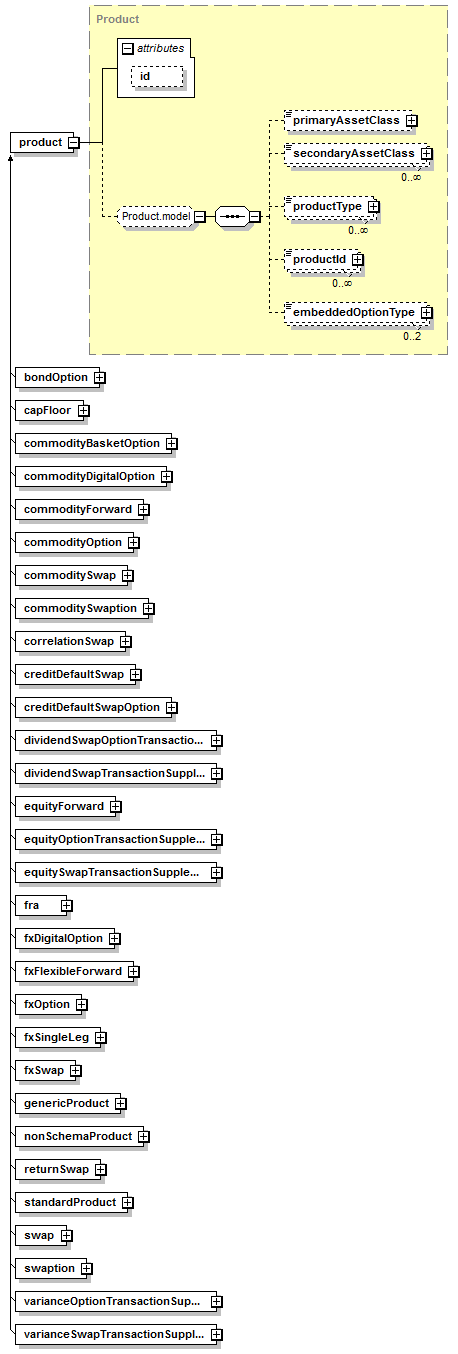

Content Model Diagram

XML Representation Summary

<product

=

xsd:ID

>

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, embeddedOptionType[0..2])?

</product>

Content model elements (5):

embeddedOptionType,

primaryAssetClass (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass

Included in content model of elements (12):

oldTrade (in change),

oldTrade (in novation),

resultingTrade (defined in PhysicalSettlement complexType),

resultingTrade (defined in TradeChangeBase complexType),

trade (defined in Events.model group),

trade (in affectedTransactions),

trade (in amendment),

trade (in change),

trade (in dataDocument)

May be substituted with elements (30):

Known Usage Locations

Within global complexTypes (2):

PhysicalSettlement [ref], Trade [ref]
As head element of substitution group affiliations (30):

bondOption, capFloor, commodityBasketOption, commodityDigitalOption, commodityForward, commodityOption, commoditySwap, commoditySwaption, correlationSwap, creditDefaultSwap, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, dividendSwapTransactionSupplement, equityForward, equityOptionTransactionSupplement, equitySwapTransactionSupplement, fra, fxDigitalOption, fxFlexibleForward, fxOption, fxSingleLeg, fxSwap, genericProduct, nonSchemaProduct, returnSwap, standardProduct, swap, swaption, varianceOptionTransactionSupplement, varianceSwapTransactionSupplement

Annotation

An abstract element used as a place holder for the substituting product elements.

XML Source (w/o annotations (1); see within schema source)

<xsd:element abstract="true" name="product" type="Product"/>
