complexType "Product"

Namespace:	http://www.fpml.org/FpML-5/recordkeeping
Content:	complex, 1 attribute, 5 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-shared-5-8.xsd; see XML source
Includes:	definition of 1 attribute
Used:	at 28 locations

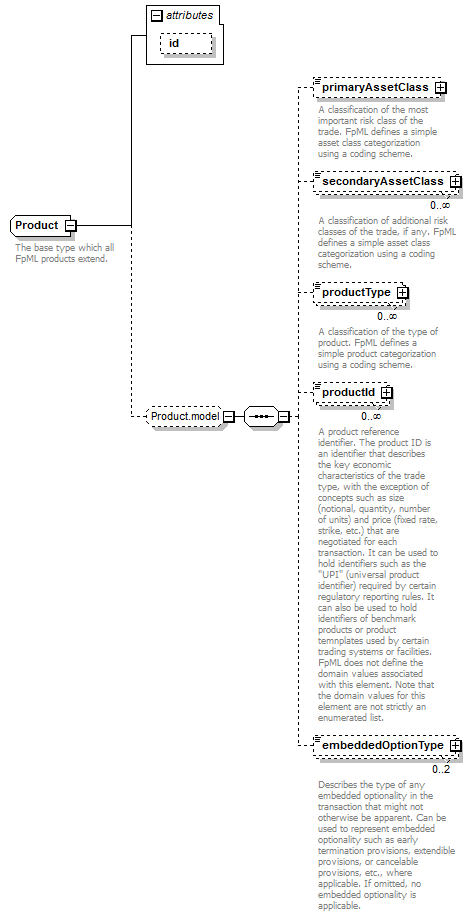

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, embeddedOptionType[0..2])?

</...>

Content Model Elements (5):

embeddedOptionType,

primaryAssetClass (defined in Product.model group),

productId,

productType (defined in Product.model group),

secondaryAssetClass (defined in Product.model group)

Known Direct Subtypes (27):

Known Indirect Subtypes (21):

All Direct / Indirect Based Elements (46):

commodityBasketOption,

commodityDigitalOption,

commodityForward,

commodityOption,

commodityPerformanceSwap,

creditDefaultSwap (in creditDefaultSwapOption),

creditDefaultSwapOption,

dividendSwapOptionTransactionSupplement,

dividendSwapTransactionSupplement,

dividendSwapTransactionSupplement (in dividendSwapOptionTransactionSupplement),

equityForward,

equityOption,

equityOptionTransactionSupplement,

equitySwapTransactionSupplement,

fra,

fxDigitalOption,

fxFlexibleForward,

fxForwardVolatilityAgreement,

instrumentTradeDetails,

swap (in swaption),

varianceOptionTransactionSupplement,

varianceSwap,

varianceSwapTransactionSupplement,

varianceSwapTransactionSupplement (in varianceOptionTransactionSupplement)

Known Usage Locations

In derivations of other global types (27):

BulletPayment (as extension base),

CapFloor (as extension base),

CommodityForward (as extension base),

CommodityOption (as extension base),

CommodityPerformanceSwapBase (as extension base),

CommoditySwap (as extension base),

CommoditySwaption (as extension base),

CreditDefaultSwap (as extension base),

DividendSwapTransactionSupplement (as extension base),

EquityDerivativeBase (as extension base),

Fra (as extension base),

FxFlexibleForward (as extension base),

FxForwardVolatilityAgreement (as extension base),

FxPerformanceSwap (as extension base),

FxSingleLeg (as extension base),

FxSwap (as extension base),

GenericProduct (as extension base),

InstrumentTradeDetails (as extension base),

NettedSwapBase (as extension base),

Option (as extension base),

ReturnSwapBase (as extension base),

StandardProduct (as extension base),

Strategy (as extension base),

Swap (as extension base),

Swaption (as extension base),

TermDeposit (as extension base),

VarianceSwapTransactionSupplement (as extension base)
As direct type of elements (1):

product

Annotation

The base type which all FpML products extend.

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="Product">

<xsd:group minOccurs="0" ref="Product.model"/>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>
