element <publication> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CommodityInformationSource
Content:	complex, 3 elements
Defined:	locally within CommodityReferencePriceFramework.model group in fpml-asset-5-8.xsd; see XML source

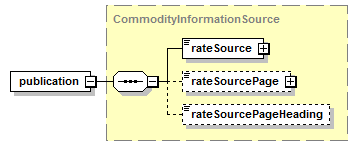

Content Model Diagram

XML Representation Summary

Content:

rateSource, rateSourcePage?, rateSourcePageHeading?

</publication>

Content model elements (3):

rateSource (in publication),

rateSourcePage (in publication),

rateSourcePageHeading (in publication)

Included in content model of elements (6):

commodity,

commodity (defined in CommodityBasketUnderlyingBase complexType),

commodity (defined in CommodityUnderlyerChoice.model group),

commodity (in commodityDigitalOption),

commodity (in commodityOption),

commodity (in floatingLeg)

Annotation

For those commodities being traded with reference to a price distributed by a publication, that publication should be specified in the 'publication' element.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="publication" type="CommodityInformationSource"/>
