element <tradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TradeIdentifier
Content:
complex, 1 attribute, 6 elements
Defined:
locally within ClearingStatusItem complexType in fpml-business-events-5-8.xsd; see XML source

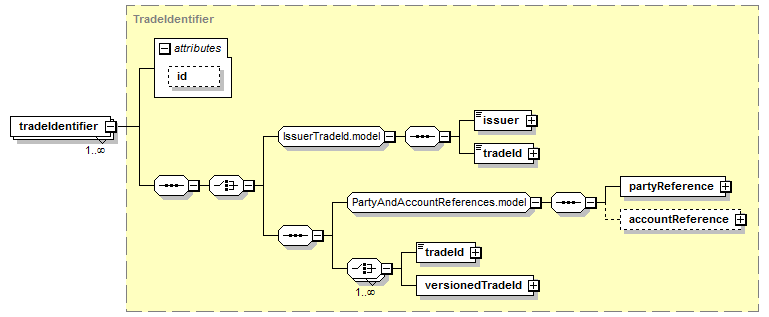

Content Model Diagram
XML Representation Summary
<tradeIdentifier

 =
xsd:ID

>

Content:
</tradeIdentifier>
Content model elements (6):
accountReference (defined in PartyAndAccountReferences.model group),
issuer (defined in IssuerTradeId.model group),
partyReference (defined in PartyAndAccountReferences.model group),
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (1):
clearingStatusItem
Annotation
Identifier(s) for the trade which is the subject of the clearing request to which this status relates.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="TradeIdentifier"/>
