complexType "BasketReferenceInformation"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 7 elements
Defined:	globally in fpml-cd-5-8.xsd; see XML source
Includes:	definitions of 4 elements
Used:	at 1 location

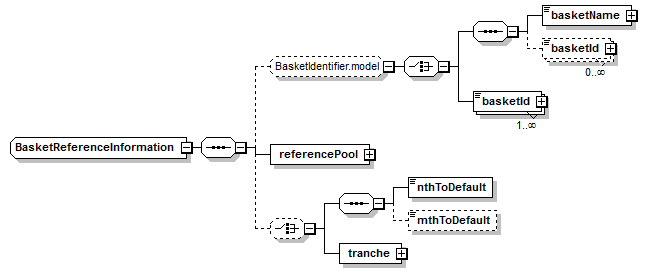

Content Model Diagram

XML Representation Summary

<...>

Content:

((basketName, basketId*) | basketId+)?, referencePool, ((nthToDefault, mthToDefault?) | tranche)?

</...>

Content Model Elements (7):

basketId (defined in BasketIdentifier.model group),

tranche (in basketReferenceInformation)

All Direct / Indirect Based Elements (1):

basketReferenceInformation

Known Usage Locations

As direct type of elements (1):

basketReferenceInformation

Annotation

CDS Basket Reference Information

XML Source (w/o annotations (6); see within schema source)

<xsd:complexType name="BasketReferenceInformation">

<xsd:sequence>

<xsd:group minOccurs="0" ref="BasketIdentifier.model"/>

<xsd:element name="referencePool" type="ReferencePool"/>

<xsd:choice minOccurs="0">

<xsd:sequence>

<xsd:element name="nthToDefault" type="xsd:positiveInteger"/>

<xsd:element minOccurs="0" name="mthToDefault" type="xsd:positiveInteger"/>

</xsd:sequence>

<xsd:element name="tranche" type="Tranche"/>

</xsd:choice>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 4/7)

mthToDefault

Type:

xsd:positiveInteger, predefined, simple content

M th reference obligation to default to allow representation of N th to M th defaults.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="mthToDefault" type="xsd:positiveInteger"/>

nthToDefault

Type:

xsd:positiveInteger, predefined, simple content

N th reference obligation to default triggers payout.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="nthToDefault" type="xsd:positiveInteger"/>

referencePool

Type:

ReferencePool, complex content

This element contains all the reference pool items to define the reference entity and reference obligation(s) in the basket

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="referencePool" type="ReferencePool"/>

tranche

Type:

Tranche, complex content

This element contains CDS tranche terms.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="tranche" type="Tranche"/>
