complexType "IndexReferenceInformation"
Namespace:
Content:
complex, 1 attribute, 10 elements
Defined:
globally in fpml-cd-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 10 elements
Used:

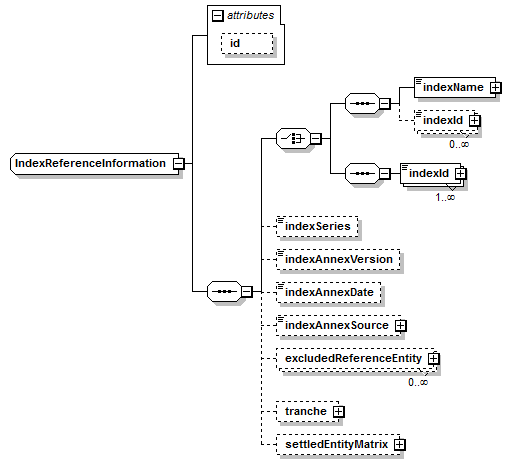

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (10):
All Direct / Indirect Based Elements (1):
indexReferenceInformation
Known Usage Locations
Annotation
A type defining a Credit Default Swap Index.
XML Source (w/o annotations (11); see within schema source)
<xsd:complexType name="IndexReferenceInformation">
<xsd:sequence>
<xsd:choice>
<xsd:sequence>
<xsd:element name="indexName" type="IndexName"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="indexId" type="IndexId"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="indexId" type="IndexId"/>
</xsd:sequence>
</xsd:choice>
<xsd:element minOccurs="0" name="indexSeries" type="xsd:positiveInteger"/>
<xsd:element minOccurs="0" name="indexAnnexVersion" type="xsd:positiveInteger"/>
<xsd:element minOccurs="0" name="indexAnnexDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="indexAnnexSource" type="IndexAnnexSource"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="excludedReferenceEntity" type="LegalEntity"/>
<xsd:element minOccurs="0" name="tranche" type="Tranche"/>
<xsd:element minOccurs="0" name="settledEntityMatrix" type="SettledEntityMatrix"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 10/10)
excludedReferenceEntity
Type:
LegalEntity, complex content
Excluded reference entity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="excludedReferenceEntity" type="LegalEntity"/>

indexAnnexDate
Type:
xsd:date, predefined, simple content
A CDS index series annex date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="indexAnnexDate" type="xsd:date"/>

indexAnnexSource
Type:
IndexAnnexSource, simple content
A CDS index series annex source.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="indexAnnexSource" type="IndexAnnexSource"/>

indexAnnexVersion
Type:
xsd:positiveInteger, predefined, simple content
A CDS index series version identifier, e.g. 1, 2, 3 etc.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="indexAnnexVersion" type="xsd:positiveInteger"/>

indexId
Type:
IndexId, simple content
A CDS index identifier (e.g. RED pair code).
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="indexId" type="IndexId"/>

indexId
Type:
IndexId, simple content
A CDS index identifier (e.g. RED pair code).
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="indexId" type="IndexId"/>

indexName
Type:
IndexName, simple content
The name of the index expressed as a free format string. FpML does not define usage rules for this element.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="indexName" type="IndexName"/>

indexSeries
Type:
xsd:positiveInteger, predefined, simple content
A CDS index series identifier, e.g. 1, 2, 3 etc.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="indexSeries" type="xsd:positiveInteger"/>

settledEntityMatrix
Type:
SettledEntityMatrix, complex content
Used to specify the Relevant Settled Entity Matrix when there are settled entities at the time of the trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="settledEntityMatrix" type="SettledEntityMatrix"/>

tranche
Type:
Tranche, complex content
This element contains CDS tranche terms.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="tranche" type="Tranche"/>
