complexType "MultipleValuationDates"
Namespace:
Content:
complex, 3 elements
Defined:
globally in fpml-cd-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:

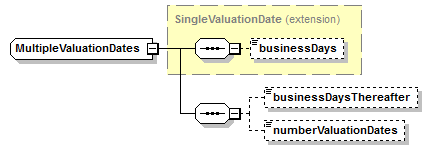

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
businessDays (defined in SingleValuationDate complexType),
All Direct / Indirect Based Elements (1):
multipleValuationDates
Known Usage Locations
Type Definition Detail
Type Derivation Tree
SingleValuationDate (extension)
  MultipleValuationDates
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="MultipleValuationDates">
<xsd:complexContent>
<xsd:extension base="SingleValuationDate">
<xsd:sequence>
<xsd:element minOccurs="0" name="businessDaysThereafter" type="xsd:positiveInteger"/>
<xsd:element minOccurs="0" name="numberValuationDates" type="xsd:positiveInteger"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/3)
businessDaysThereafter
Type:
xsd:positiveInteger, predefined, simple content
The number of business days between successive valuation dates when multiple valuation dates are applicable for cash settlement. ISDA 2003 Term: Business Days thereafter
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="businessDaysThereafter" type="xsd:positiveInteger"/>

numberValuationDates
Type:
xsd:positiveInteger, predefined, simple content
Where multiple valuation dates are specified as being applicable for cash settlement, this element specifies (a) the number of applicable valuation dates, and (b) the number of business days after satisfaction of all conditions to settlement when the first such valuation date occurs, and (c) the number of business days thereafter of each successive valuation date. ISDA 2003 Term: Multiple Valuation Dates
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="numberValuationDates" type="xsd:positiveInteger"/>
