complexType "CoalDelivery"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

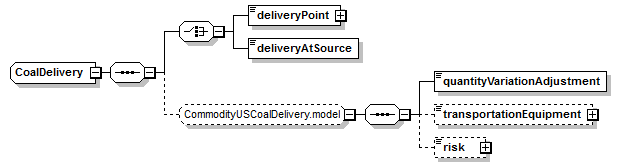

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (5):
All Direct / Indirect Based Elements (1):
deliveryConditions (in coalPhysicalLeg)
Known Usage Locations
Annotation
The physical delivery conditions for coal.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="CoalDelivery">
<xsd:sequence>
<xsd:choice>
<xsd:element name="deliveryPoint" type="CoalDeliveryPoint"/>
<xsd:element name="deliveryAtSource" type="xsd:boolean"/>
</xsd:choice>
<xsd:group minOccurs="0" ref="CommodityUSCoalDelivery.model"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/5)
deliveryAtSource
Type:
xsd:boolean, predefined, simple content
The point at which the Coal Product as a reference to the Source of the Coal Product. This should be a reference to the source element within product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryAtSource" type="xsd:boolean"/>
deliveryPoint
Type:
CoalDeliveryPoint, simple content
The point at which the Coal Product will be delivered and received.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryPoint" type="CoalDeliveryPoint"/>
