complexType "CommodityDeliveryPeriods"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 5 elements
Defined:	globally in fpml-com-5-8.xsd; see XML source
Includes:	definitions of 1 attribute, 2 elements
Used:	at 5 locations

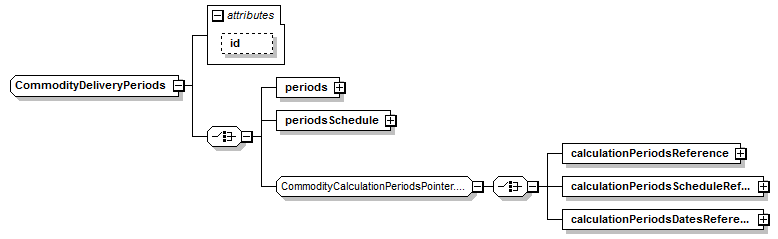

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

periods | periodsSchedule | calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference

</...>

Content Model Elements (5):

calculationPeriodsDatesReference, calculationPeriodsReference, calculationPeriodsScheduleReference, periods, periodsSchedule

Known Direct Subtypes (1):

GasDeliveryPeriods

All Direct / Indirect Based Elements (5):

deliveryPeriods (in coalPhysicalLeg),

deliveryPeriods (in electricityPhysicalLeg),

deliveryPeriods (in gasPhysicalLeg),

deliveryPeriods (in metalPhysicalLeg),

deliveryPeriods (in oilPhysicalLeg)

Known Usage Locations

In derivations of other global types (1):

GasDeliveryPeriods (as extension base)
As direct type of elements (4):

deliveryPeriods (in coalPhysicalLeg),

deliveryPeriods (in electricityPhysicalLeg),

deliveryPeriods (in metalPhysicalLeg),

deliveryPeriods (in oilPhysicalLeg)

Annotation

The different options for specifying the Delivery Periods of a physical leg.

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType name="CommodityDeliveryPeriods">

<xsd:choice>

<xsd:element name="periods" type="AdjustableDates"/>

<xsd:element name="periodsSchedule" type="CommodityCalculationPeriodsSchedule"/>

<xsd:group ref="CommodityCalculationPeriodsPointer.model"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>

Content Element Detail (all declarations; defined within this component only; 2/5)

periods

Type:

AdjustableDates, complex content

The Delivery Periods for this leg of the swap. This type is only intended to be used if the Delivery Periods differ from the Calculation Periods on the fixed or floating leg. If DeliveryPeriods mirror another leg, then the calculationPeriodsReference element should be used to point to the Calculation Periods on that leg - or the calculationPeriodsScheduleReference can be used to point to the Calculation Periods Schedule for that leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="periods" type="AdjustableDates"/>

periodsSchedule

Type:

CommodityCalculationPeriodsSchedule, complex content

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="periodsSchedule" type="CommodityCalculationPeriodsSchedule"/>
