complexType "CommodityRelativeExpirationDates"
Namespace:
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements
Used:

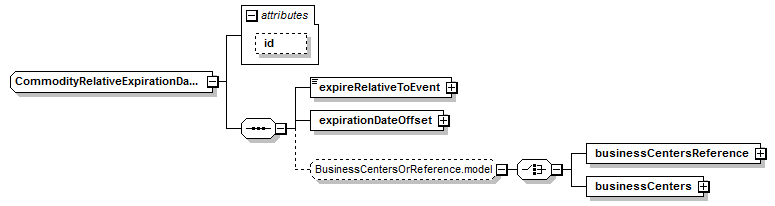

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
expirationDateOffset,
expireRelativeToEvent
All Direct / Indirect Based Elements (3):
relativeCommencementDates,
relativeExpirationDates (in americanExercise defined in CommodityPhysicalExercise complexType),
relativeExpirationDates (in europeanExercise defined in CommodityPhysicalExercise complexType)
Known Usage Locations
Annotation
The Expiration Dates of the trade relative to the Calculation Periods.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="CommodityRelativeExpirationDates">
<xsd:sequence>
<xsd:element name="expireRelativeToEvent" type="CommodityExpireRelativeToEvent"/>
<xsd:element name="expirationDateOffset" type="DateOffset"/>
<xsd:group minOccurs="0" ref="BusinessCentersOrReference.model"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 2/4)
expirationDateOffset
Type:
DateOffset, complex content
Specifies any offset from the adjusted Calculation Period start date or adjusted Calculation Period end date applicable to each Payment Date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expirationDateOffset" type="DateOffset"/>

expireRelativeToEvent
Type:
Specifies whether the payment(s) occur relative to the date of a physical event.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
