complexType "CommodityRelativePaymentDates"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 8 elements
Defined:	globally in fpml-com-5-8.xsd; see XML source
Includes:	definitions of 1 attribute, 3 elements
Used:	at 2 locations

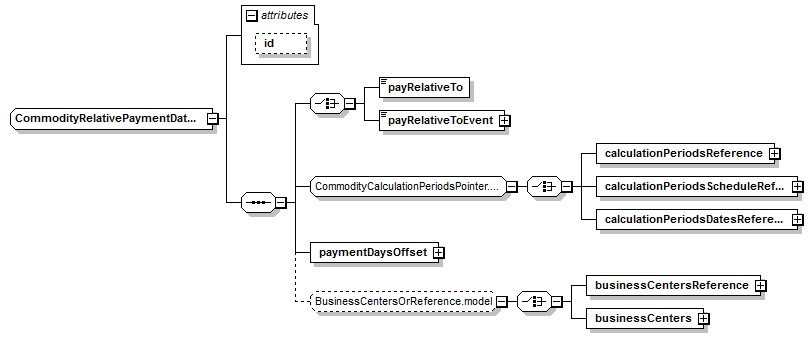

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

(payRelativeTo | payRelativeToEvent), (calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), paymentDaysOffset, (businessCentersReference | businessCenters)?

</...>

Content Model Elements (8):

businessCenters (defined in BusinessCentersOrReference.model group),

businessCentersReference,

calculationPeriodsDatesReference,

calculationPeriodsReference,

calculationPeriodsScheduleReference,

payRelativeTo (defined in CommodityRelativePaymentDates complexType),

payRelativeToEvent,

paymentDaysOffset (defined in CommodityRelativePaymentDates complexType)

All Direct / Indirect Based Elements (2):

paymentDates (in weatherLeg),

relativePaymentDates

Known Usage Locations

As direct type of elements (2):

paymentDates (in weatherLeg),

relativePaymentDates

Annotation

The Payment Dates of the trade relative to the Calculation Periods.

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType name="CommodityRelativePaymentDates">

<xsd:sequence>

<xsd:choice>

<xsd:element name="payRelativeTo" type="CommodityPayRelativeToEnum"/>

<xsd:element name="payRelativeToEvent" type="CommodityPayRelativeToEvent"/>

</xsd:choice>

<xsd:group ref="CommodityCalculationPeriodsPointer.model"/>

<xsd:element name="paymentDaysOffset" type="DateOffset"/>

<xsd:group minOccurs="0" ref="BusinessCentersOrReference.model"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>

Content Element Detail (all declarations; defined within this component only; 3/8)

paymentDaysOffset

Type:

DateOffset, complex content

Specifies any offset from the adjusted Calculation Period start date, adjusted Calculation Period end date or Calculation Date applicable to each Payment Date.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="paymentDaysOffset" type="DateOffset"/>

payRelativeTo

Type:

CommodityPayRelativeToEnum, simple content

Specifies whether the payment(s) occur relative to a date such as the end of each Calculation Period or the last Pricing Date in each Calculation Period.

Simple Content

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="payRelativeTo" type="CommodityPayRelativeToEnum"/>

payRelativeToEvent

Type:

CommodityPayRelativeToEvent, simple content

Specifies whether the payment(s) occur relative to the date of a physical event such as issuance of a bill of lading.

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="payRelativeToEvent" type="CommodityPayRelativeToEvent"/>
