complexType "CommoditySpread"
Namespace:
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:

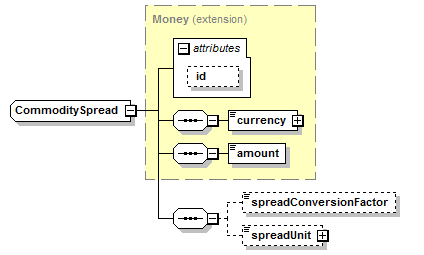

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
amount (defined in Money complexType),
currency (defined in MoneyBase complexType),
All Direct / Indirect Based Elements (2):
spread (defined in FloatingLegCalculation complexType),
Known Usage Locations
Type Definition Detail
Type Derivation Tree
MoneyBase (extension)
  Money (extension)
      CommoditySpread
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="CommoditySpread">
<xsd:complexContent>
<xsd:extension base="Money">
<xsd:sequence>
<xsd:element minOccurs="0" name="spreadConversionFactor" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="spreadUnit" type="QuantityUnit"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/4)
spreadConversionFactor
Type:
xsd:decimal, predefined, simple content
spreadConversionFactor should be used when the unit of measure of the Commodity Reference Price and the unit of measure in which the spread is quoted are different. The value of spreadConversionFactor is the number of units of measure in which the spread is quoted per unit of measure of the Commodity Reference Price.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="spreadConversionFactor" type="xsd:decimal"/>

spreadUnit
Type:
QuantityUnit, simple content
spreadUnit should be used when the unit of measure of the Commodity Reference Price and the unit of measure in which the spread is quoted are different. The value of spreadUnit is the unit of measure in which the spread is quoted.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="spreadUnit" type="QuantityUnit"/>
