complexType "ElectricityDeliveryType"
Namespace:
Content:
complex, 4 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:

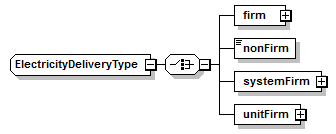

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (4):
firm, nonFirm, systemFirm, unitFirm
All Direct / Indirect Based Elements (1):
deliveryType (in deliveryConditions in electricityPhysicalLeg)
Known Usage Locations
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="ElectricityDeliveryType">
<xsd:choice>
<xsd:element name="firm" type="ElectricityDeliveryFirm"/>
<xsd:element name="nonFirm" type="xsd:boolean"/>
<xsd:element name="systemFirm" type="ElectricityDeliverySystemFirm"/>
<xsd:element name="unitFirm" type="ElectricityDeliveryUnitFirm"/>
</xsd:choice>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
firm
Type:
ElectricityDeliveryFirm, complex content
Indicates under what condtitions the Parties' delivery obligations apply.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="firm" type="ElectricityDeliveryFirm"/>

nonFirm
Type:
xsd:boolean, predefined, simple content
If present and set to true, indicates that delivery or receipt of the electricity may be interrupted for any reason or for no reason, without liability on the part of either Party. This element should never have a value of false.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="nonFirm" type="xsd:boolean"/>

systemFirm
Type:
Indicates that the electricity is intended to be supplied from the owned or controlled generation or pre-existing purchased power assets of the system specified.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="systemFirm" type="ElectricityDeliverySystemFirm"/>

unitFirm
Type:
Indicates that the electricity is intended to be supplied from a generation asset which can optionally be specified.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="unitFirm" type="ElectricityDeliveryUnitFirm"/>
