complexType "GasProduct"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

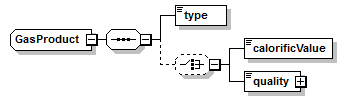

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
type (in gas)
All Direct / Indirect Based Elements (1):
gas
Known Usage Locations
Annotation
A type defining the characteristics of the gas being traded in a physically settled gas transaction.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="GasProduct">
<xsd:sequence>
<xsd:element name="type" type="GasProductTypeEnum"/>
<xsd:choice minOccurs="0">
<xsd:element name="calorificValue" type="NonNegativeDecimal"/>
<xsd:element name="quality" type="GasQuality"/>
</xsd:choice>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
calorificValue
Type:
NonNegativeDecimal, simple content
The calorific value of the gas to be delivered, specified in megajoules per cubic meter (MJ/m3).
Simple Content
xsd:decimal
minInclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="calorificValue" type="NonNegativeDecimal"/>
quality
Type:
GasQuality, simple content
The quality of the gas to be delivered.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="quality" type="GasQuality"/>
type
Type:
GasProductTypeEnum, simple content
The type of gas to be delivered.
Simple Content
enumeration of xsd:token
Enumeration:
"Butane"
 -
Normal butane (C4H10)
"CarbonDioxide"
 -
Carbon Dioxide (CO2)
"EPMix"
 -
Ethane-Propane Mix
"Ethane"
 -
Ethane (C2H6)
"Gasoline"
 -
Natural Gasoline (C4 – C12)
"Helium"
 -
Helium (He)
"HydrogenSulfide"
 -
Hydrogen Sulfide (H2S)
"Isobutane"
 -
Iso-Butane (C4H10)
"Methane"
 -
Methane (CH4)
"Naphtha"
 -
Naphtha (C5 – C12)
"NaturalGas"
"Nitrogen"
 -
Nitrogen (N2)
"Pentane"
 -
Pentane (C5H12)
"Propane"
 -
Propane (C3H8)
"Propylene"
 -
Propylene or propene (C3H6)
"Water"
 -
Water Vapor (H2O)
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="type" type="GasProductTypeEnum"/>
