complexType "Lag"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements
Used:
at 3 locations

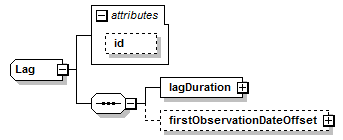

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (2):
firstObservationDateOffset, lagDuration
All Direct / Indirect Based Elements (3):
lag (defined in CommodityPricingDates complexType),
lag (defined in CommodityValuationDates complexType),
lag (defined in LagOrReference.model group)
Known Usage Locations
Annotation
An observation period that is offset from a Calculation Period.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="Lag">
<xsd:sequence>
<xsd:element name="lagDuration" type="Period"/>
<xsd:element minOccurs="0" name="firstObservationDateOffset" type="Period"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 2/2)
firstObservationDateOffset
Type:
Period, complex content
The interval between the start of each lagDuration and the start of each respective calculation period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="firstObservationDateOffset" type="Period"/>
lagDuration
Type:
Period, complex content
The period during which observations will be made. If a firstObservationDateOffset is specified, the observation period will start the specified interval prior to each Calculation Period - i.e. if the firstObservationDateOffset is 4 months and the lagDuration is 3 months, observations will be taken in months 4,3 and 2 (but not 1) prior to each Calculation Period. If no firstObservationDate is specified, the observation period will end immediately preceding each Calculation Period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="lagDuration" type="Period"/>
