complexType "OilPipelineDelivery"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 6 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 1 location

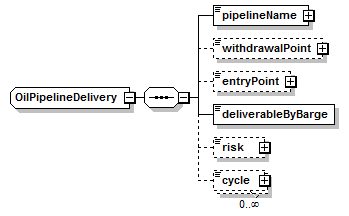

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (6):
All Direct / Indirect Based Elements (1):
pipeline
Known Usage Locations
Annotation
The physical delivery conditions specific to an oil product delivered by pipeline.
XML Source (w/o annotations (7); see within schema source)
<xsd:complexType name="OilPipelineDelivery">
<xsd:sequence>
<xsd:element name="pipelineName" type="CommodityPipeline"/>
<xsd:element minOccurs="0" name="withdrawalPoint" type="CommodityDeliveryPoint"/>
<xsd:element minOccurs="0" name="entryPoint" type="CommodityDeliveryPoint"/>
<xsd:element name="deliverableByBarge" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="risk" type="CommodityDeliveryRisk"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="cycle" type="CommodityPipelineCycle"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/6)
cycle
Type:
CommodityPipelineCycle, simple content
The cycle(s) during which the oil product will be transported in the pipeline.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="cycle" type="CommodityPipelineCycle"/>
deliverableByBarge
Type:
xsd:boolean, predefined, simple content
Whether or not the delivery can go to barge. For trades documented under the ISDA Master Agreement and Oil Annex, this should always be set to 'false'.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliverableByBarge" type="xsd:boolean"/>
entryPoint
Type:
CommodityDeliveryPoint, simple content
The point at which the oil product will enter the pipeline.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="entryPoint" type="CommodityDeliveryPoint"/>
pipelineName
Type:
CommodityPipeline, simple content
The name of pipeline by which the oil product will be delivered.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="pipelineName" type="CommodityPipeline"/>
risk
Type:
CommodityDeliveryRisk, simple content
Specifies how the risk associated with the delivery is assigned. For trades documented under the ISDA Master Agreement and Oil Annex, this presence of this element indicates that the provisions of clause (b)(i) of the ISDA Oil Annex are being varied.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="risk" type="CommodityDeliveryRisk"/>
withdrawalPoint
Type:
CommodityDeliveryPoint, simple content
The location at which the transfer of the title to the commodity takes place.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="withdrawalPoint" type="CommodityDeliveryPoint"/>
